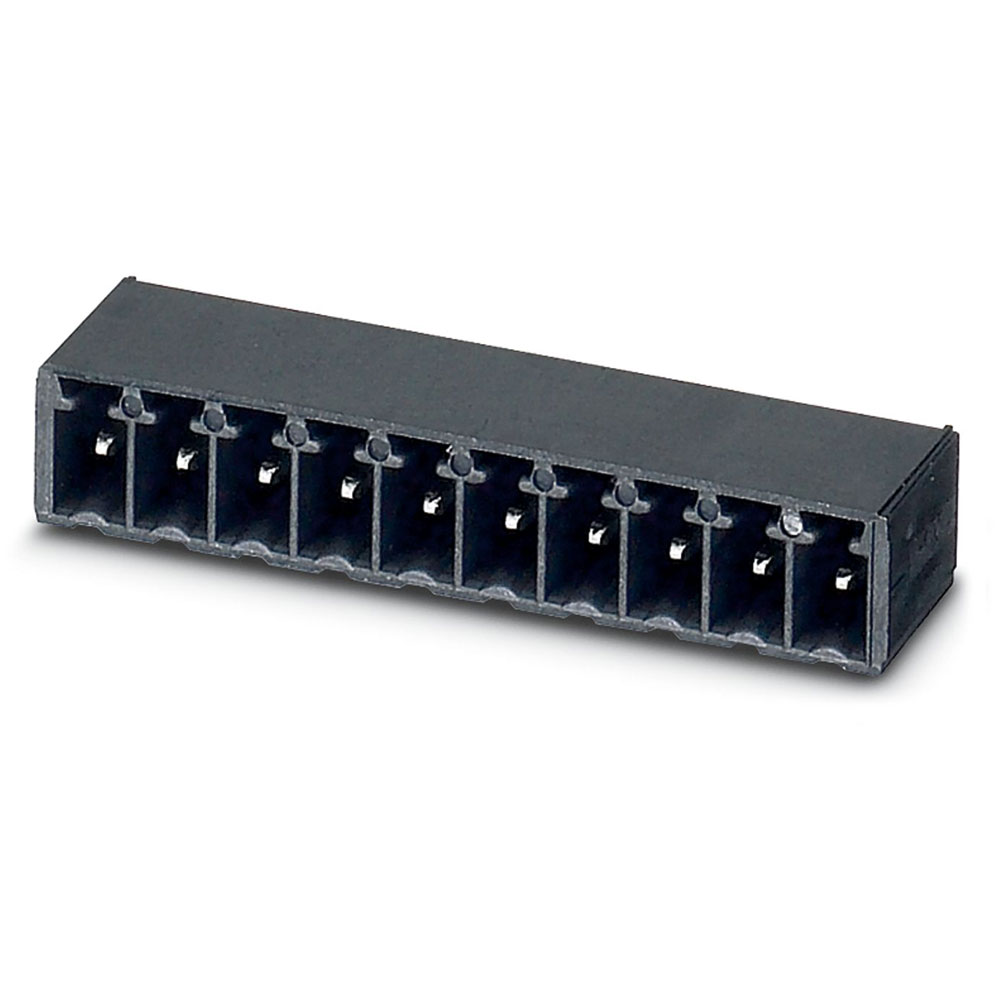

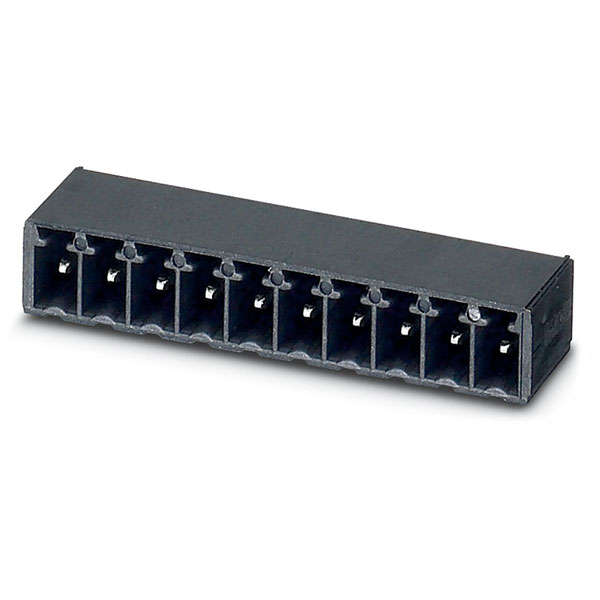

Phoenix Contact 1788686 pin housing PCB 11 pins 3.5 mm spacing

Phoenix Contact's pin housing PCB, model 1788686, features 11 pins with a contact spacing of 3.5 mm, ideal for compact circuit designs. This PCB socket strip, designed for through-hole reflow applications, ensures reliable electrical connections. Typically used in electronic and industrial automation systems, it facilitates secure and efficient connectivity.

Body Style	Plug, horizontal mount
Pitch	3.5mm
No of Ways Per Row	11
No. of Rows	1
Current Rating	8A
Colour	Black
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
Angle PCB/contact	N/A
Connection	Print
Connector contact surface	Tin
Connector model	Other
Contact Type	Pin
Diameter connection pin	1.4mm
Dim	(L x W x H) 9.2 x 39.89 x 9.5 mm
Height	9.5mm
Housing colour	Black
Inflammability class of insulation material according to UL94	V0
Insulation Material	LCP
Length	9.2mm
Length pin	2.6mm
Material insulation body	Other
Material of contact surface	Other
Misc Attribute	MC 1,5/11-G-3,5 P26 THR
Modular spacing connections	3.5mm
Modular spacing contacts	3.5mm
Nominal Voltage	250V
Number of plug-in contact rows	1
Number of Poles	11
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	8A
Rated Surge Voltage	2.5kV
Rated voltage	160V
Suitable for PCB thickness	N/Amm
Total number of pins	11
Type of banding	Carton (for SMD)
Type of connection	N/A
Type of electric connection	Other
Type of fastening	Other
Type of PCB fastening	N/A
Width	39.89mm
