Phoenix Contact 1726147 2-tier Terminal 1.50 mm² 14 pins green 1pc

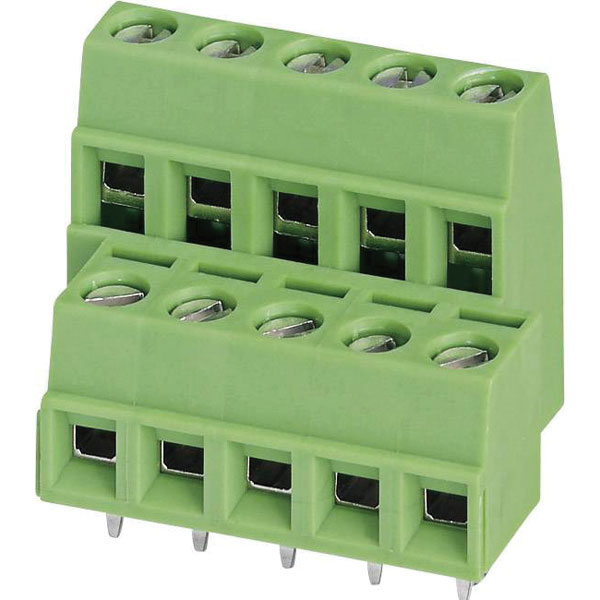

Image Representative of Range

Phoenix Contact 1726147 2-tier Terminal 1.50 mm² 14 pins green 1pc

Phoenix Contact
Order Code:

06-1855

Brand: Phoenix Contact MPN: 1726147 EAN-13: 2050000259135
Qty Unit Price (Ex VAT)
1+ £4.04
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
46 in stock, despatched in 4 working days

The Phoenix Contact 1726147 is a 2-tier terminal block designed for printed circuit boards with 14 pins and accommodates wires up to 1.50 mm². It is green and typically used for connecting electrical components securely on a PCB. This component is ideal for use in electronics applications requiring reliable multi-level connections.
Pitch 5mm
No. of Ways 14
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 14AWG
Wire Termination Rising Clamp
Actuation direction Perpendicular (to the PCB)
AWG (min.) 26
AWG max. 16
Colour Green
Connector cross section 0.14 - 1.5mm²
Connector orientation Parallel (to the PCB)
Contact Material Tin plated
Contamination level 3
Cross section (flexible) (max.) 1.50mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 1.50mm²
Cross section (inflexible) (min.) 0.14mm²
CS 5mm
Current Rating 13.5A
Factory colour Green
Height 22.60mm
Industrial packaging Yes
Length 18.30mm
Min. stripping length 5mm
Misc Attribute 1 MKKDSN 1,5/ 7
Misc Attribute 2 MKKDSN 1,5/7
No. of Levels 2
Pins per row 7
Series MKKDSN
Stripping length (max.) 6mm
Type 2-tier terminal
Voltage Rating 400V
Width 35.00mm
Wire protection Yes
