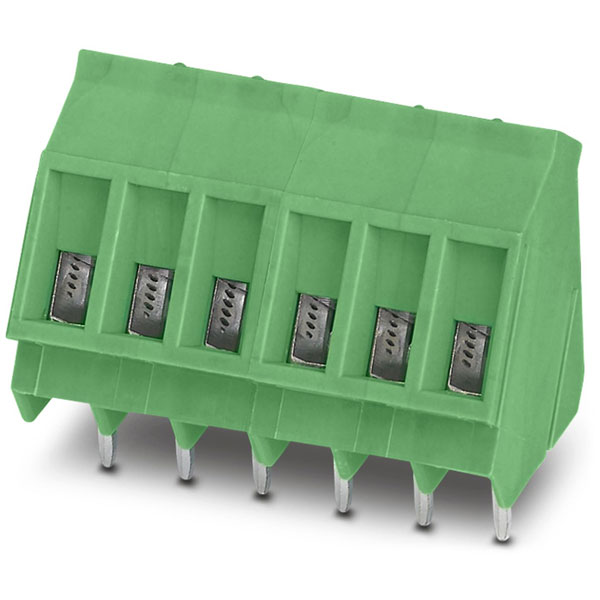

Phoenix Contact 1713736 SMKDS PCB Header, 3/ 3-5.08 3-pin ,5.08mm, 24A, 400V - A Phoenix Contact 1713736 COMBICON SMKDS 5.08mm pitch PCB terminal block connector. With a 35° angled mating connection and side interlocking functionality, the block connector has rising M3 cage clamp screw terminals that accept a wire size range of 30 to 12 AWG and a green nylon polyamide housing.
- Current rating of 24A
- Maximum load current of 28A
- Voltage rating of 630V
- 35° angled connection
- Pitch of 5.08mm
- Wire size of 30-12 AWG
- Stripping length of 8mm
- Hole diameter of 1.3mm
- Length of 10.6mm
| Pitch |
5.08mm |
| No. of Ways |
3 |
| Mounting Type |
PCB |
| Mounting Direction |
Vertical |
| Wire Gauge (AWG) |
24 to 12AWG |
| Wire Termination |
Rising Clamp |
| Angle PCB/conductor connection |
N/A |
| Colour |
Green |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 2.5mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2 - 2.5mm² |
| Connectable conductor cross section multi-wired |
0.2 - 1.5mm² |
| Connectable conductor cross section solid-core |
0.2 - 4mm² |
| Connection type conductor |
Screw connection |
| Connection type PCB |
Soldering connection |
| Contact Finish |
Tin-plated |
| Current Rating |
24A |
| Degree of protection (IP), mounted |
N/A |
| Diameter connection pin |
N/Amm |
| Height |
22.37mm |
| Housing Colour |
Green |
| Inflammability class of insulation material according to UL94 |
V0 |
| Length |
of 10.6mm |
| Length pin |
4.5mm |
| Material connection surface |
Tin |
| Material insulation body |
Other |
| Modular spacing connections |
5.08mm |
| No. of Levels |
1 |
| Number of electrical connections |
3 |
| Number of levels |
1 |
| Operating Temperature |
-40 - 105°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Rated current In |
24A |
| Rated Surge Voltage |
4kV |
| Rated voltage |
400V |
| Stripping length |
of 8mm |
| Type of banding |
Carton (for SMD) |
| Type of fastening |
N/A |
| Type of PCB fastening |
N/A |
| Voltage |
rating of 630V |
| Voltage Rating |
400V |
