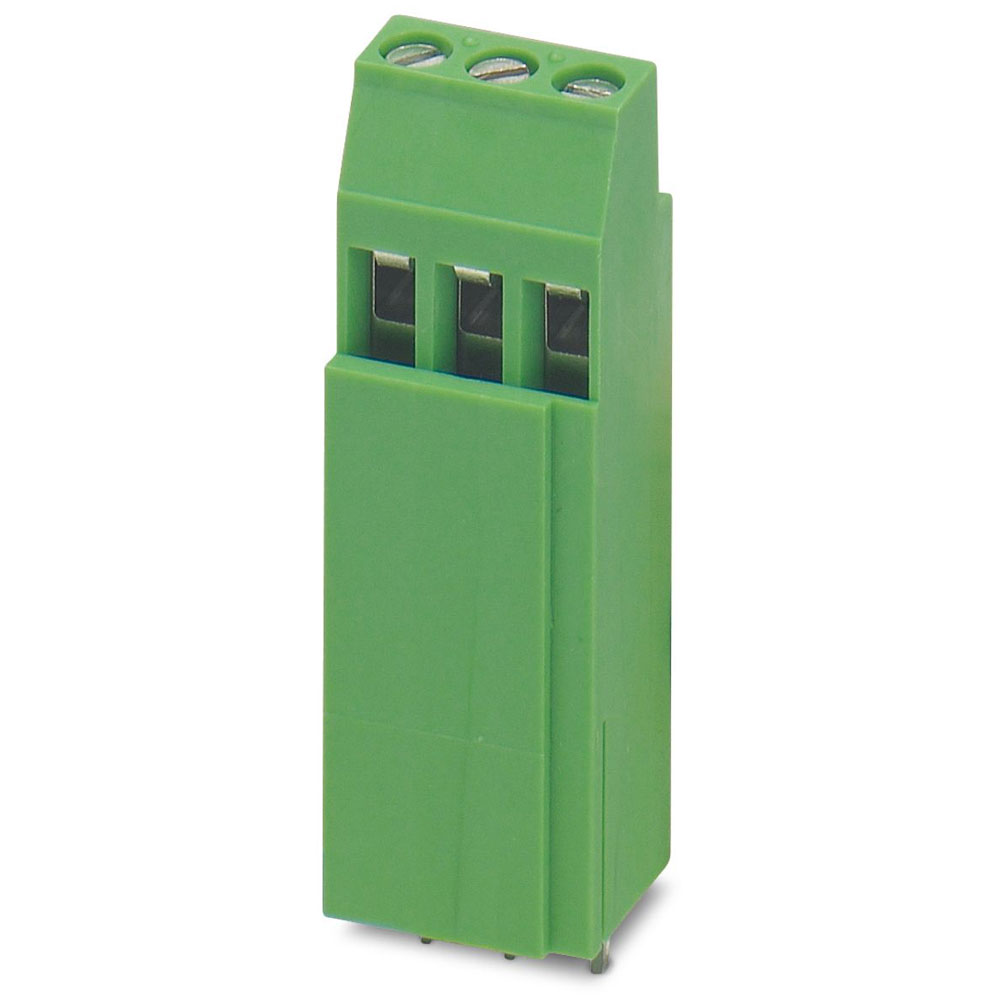

This Phoenix Contact 1705572 76A, 1000V, 10.16mm pitch linear PCB mounting feed-through header is from the MKDS 10 HV/ 1-B-10,16 BU series.
- No. of ways: 1
- Nominal current: 76A
- Rated voltage: 1000V
- Pitch: 10.16mm
- Length: 18.7mm
- Width: 10.16mm
- Height: 35.8mm
- Through-hole PCB mounting with linear double pinning
- Housing colour: Blue
- Screw connection with tension sleeve
| Pitch |
10.16mm |
| No. of Ways |
1 |
| Mounting Type |
PCB |
| Mounting Direction |
Vertical |
| Wire Gauge (AWG) |
20 - 6 AWGmm² |
| Wire Termination |
Rising Clamp |
| Angle PCB/conductor connection |
N/A |
| Colour |
Blue |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.5 - 16mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5 - 16mm² |
| Connectable conductor cross section multi-wired |
0.5 - 6mm² |
| Connectable conductor cross section solid-core |
0.5 - 16mm² |
| Connection type conductor |
Screw connection |
| Connection type PCB |
Soldering connection |
| Current Rating |
76A |
| Degree of protection (IP), mounted |
N/A |
| Diameter connection pin |
N/Amm |
| Height |
35.8mm |
| Housing Colour |
Blue |
| Inflammability class of insulation material according to UL94 |
V0 |
| Length pin |
5mm |
| Material connection surface |
Tin |
| Material insulation body |
Other |
| Modular spacing connections |
10.16mm |
| No. of Levels |
1 |
| Number of electrical connections |
1 |
| Number of levels |
1 |
| Operating Temperature |
-40 - 105°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Rated current In |
76A |
| Rated Surge Voltage |
8kV |
| Rated voltage |
1000V |
| Screw connection |
with tension sleeve |
| Type of banding |
Carton (for SMD) |
| Type of fastening |
Solder |
| Type of PCB fastening |
Connecting contact |
| Voltage Rating |
1000V |
