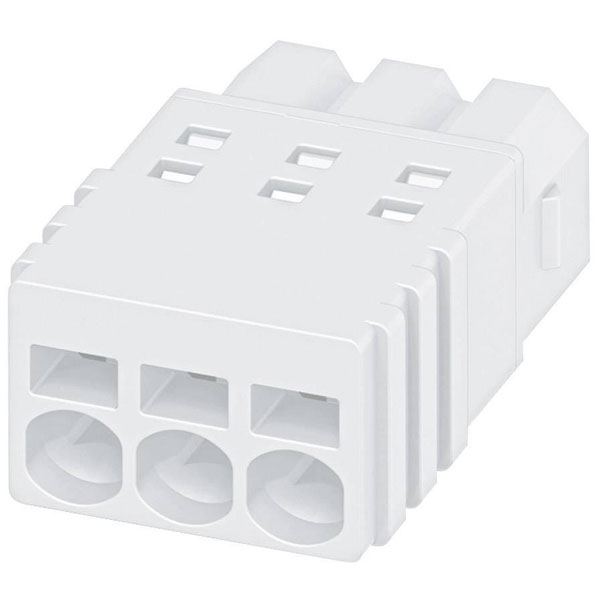

Phoenix Contact 1704854 PTSM socket housing 3 pins 2.50 mm spacing

Phoenix Contact manufactures the socket housing cable PTSM with a configuration of 3 pins and a contact spacing of 2.50 mm. This plug part terminal block is ideal for compact wiring solutions and can be used in various electronic applications. It comes as a single piece and is typically utilised in signal and low-power connections.

Body Style	Socket, straight
Pitch	2.5mm
No of Ways Per Row	3
No. of Rows	1
Current Rating	6A
Colour	White
Wire Gauge (AWG)	20
Wire Gauge (mm²)	0.5mm²
Angle contact/conductor connection	Other
AWG (min.)	24
Coating housing	N/A
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.34mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 0.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.14 - 0.5mm²
Connector System	wire-to-board
Contact Material	Tin plated
Contact Type	Bus
Degree of protection (IP), mounted	N/A
Dim	(L x W x H) 5.00 x 15.00 x 8.60 mm
Height	8.60mm
Housing Colour	White
Housing Material	Other
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Length	5.00mm
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
max. cross section	0.5mm²
Min. cross section	0.2mm²
Misc Attribute 1	PTSM 0,5/ 3-P-2,5 WH
Misc Attribute 2	Connector part
Modular spacing connections	2.5mm
Modular spacing contacts	2.5mm
Nominal Voltage	160V
Number of plug-in contact rows	1
Number of Poles	3
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	6A
Rated Surge Voltage	2.5kV
Rated voltage	160V
Series	PTSM
Stripping length (max.)	6.00mm
Total number of pins	3
Type	Socket housing cable
Type of connection	Other
Type of electric connection	Spring clamp connection
Width	15.00mm
With protective conductor	N/A
