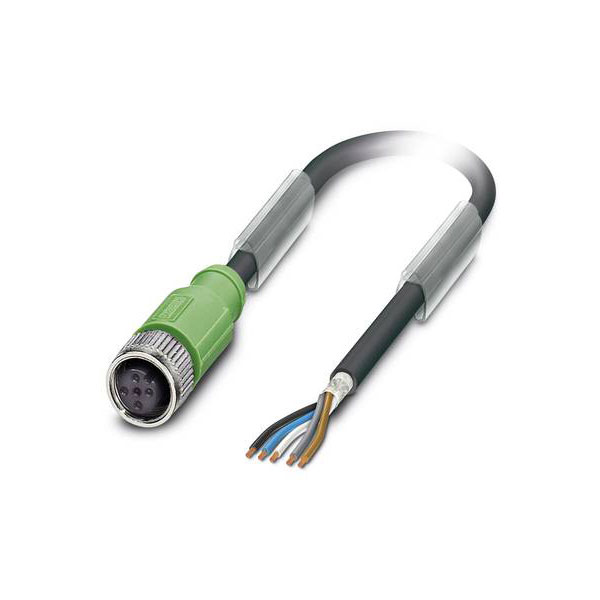

The Phoenix Contact Sensor/Actuator cable SAC-5P-1,5-PUR/M12FS SH 1682935 is a pre-fabricated connector designed for efficient connectivity in industrial settings. It features a robust 5-position design with a 1.5-metre polyurethane sheath, suitable for applications demanding flexibility and durability. This cable is typically used in automation and control systems to connect sensors and actuators.
| Connector 1 |
Cable, open end |
| Connector 2 |
M12 |
| Colour |
Black |
| Length |
1.5m |
| Type |
Sensor connector |
| Cable Length |
1.5m |
| Cable Type |
Multi-core |
| Coding |
A |
| Colour cable sheath |
Other |
| Connection |
Open end cable |
| Continuity resistance |
N/AmOhm |
| Cross-section (sensor/actuator wiring) |
0.34mm² |
| Degree of protection (IP) |
IP65 |
| Diameter |
1.27mm |
| Halogen free |
true |
| IP Rating |
IP65 |
| Material |
PUR |
| Material contact body |
CuSn |
| Material of cable sheath |
Other |
| Material of contact surface |
Other |
| Misc Attribute |
SAC-5P- 1,5-PUR/M12FS SH |
| Nominal Current |
4A |
| Number of Poles |
5 |
| Permitted cable outer temperature after assembling without vibration |
-40 - 80°C |
| Permitted cable outer temperature during assembling/handling |
-25 - 80°C |
| Positioning cable feed, box-sided |
Straight |
| Positioning cable feed, field-sided |
Other |
| Rated current In |
4A |
| Rated voltage |
48V |
| Screened |
true |
| Thread Type |
M12 |
| Type of electrical connection, box-sided |
M12 |
| Type of electrical connection, field-sided |
Other |
| Type of plug-in contact, box-sided |
Female (bus) |
| Type of plug-in contact, field sided |
N/A |
| Vulcanized |
false |
| With LED indication |
false |
