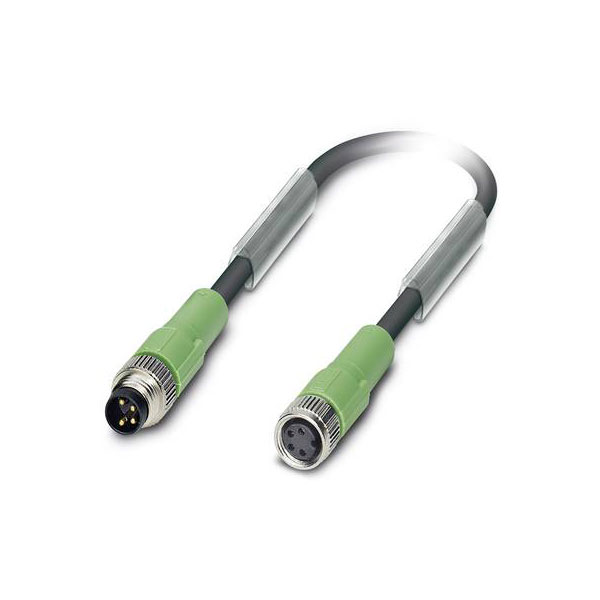

Phoenix Contact 1682171 SAC Cable 4-Pos Plug/Socket M8 3m Black-Gray

Phoenix Contact manufactures the Sensor/Actuator cable SAC-4P-M 8MS/3,0-PUR/M 8FS 1682171, known for its robust build with a 4-pin connection and a 3-metre length. This cable features a PUR jacket, providing excellent resistance to oils and chemicals, making it suitable for industrial automation applications. Typically, it is used to connect sensors and actuators in factory environments.

Connector 1	M8
Connector 2	M8
Colour	Black
Length	3m
Type	Sensor connector
Cable Length	3m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
IP Rating	IP65
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-4P-M 8MS/3,0-PUR/M 8FS
Nominal Current	4A
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	48V
Screened	false
Thread Type	M8
Type of electrical connection, box-sided	M8
Type of electrical connection, field-sided	M8
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
