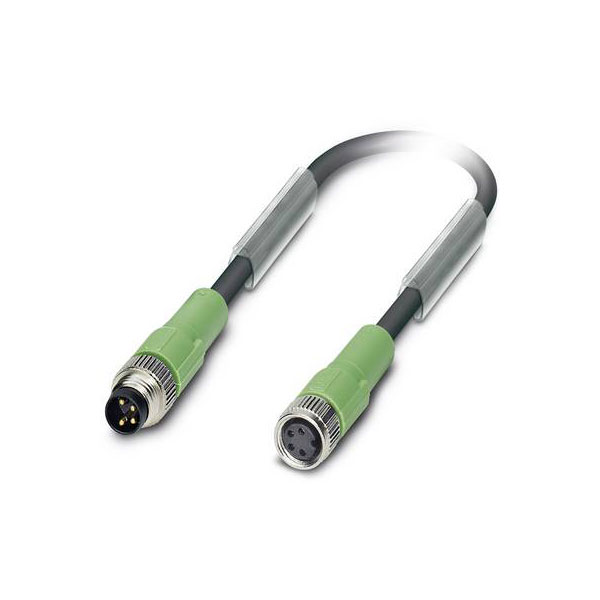

The Phoenix Contact Sensor/Actuator cable SAC-4P-M 8MS/0,3-PUR/M 8FS 1682142 is a pre-fabricated connector designed for reliable connections in industrial environments. This product features a four-pin M8 connector on both ends with a 0.3 metre PUR cable, ideal for use in automation and sensor-based applications. It provides secure and durable connections, frequently utilised in machinery and equipment to ensure seamless communication between sensors and actuators.
| Connector 1 |
M8 |
| Connector 2 |
M8 |
| Colour |
Black |
| Length |
0.3m |
| Type |
Sensor connector |
| Cable Length |
0.3m |
| Cable Type |
Multi-core |
| Coding |
A |
| Colour cable sheath |
Other |
| Continuity resistance |
N/AmOhm |
| Cross-section (sensor/actuator wiring) |
0.25mm² |
| Degree of protection (IP) |
IP65 |
| Diameter |
1.17mm |
| Halogen free |
true |
| IP Rating |
IP65 |
| Material |
PUR |
| Material contact body |
CuSn |
| Material of cable sheath |
Other |
| Material of contact surface |
Other |
| Misc Attribute |
SAC-4P-M 8MS/0,3-PUR/M 8FS |
| Nominal Current |
4A |
| Number of Poles |
4 |
| Permitted cable outer temperature after assembling without vibration |
-40 - 80°C |
| Permitted cable outer temperature during assembling/handling |
-25 - 80°C |
| Positioning cable feed, box-sided |
Straight |
| Positioning cable feed, field-sided |
Straight |
| Rated current In |
4A |
| Rated voltage |
48V |
| Screened |
false |
| Thread Type |
M8 |
| Type of electrical connection, box-sided |
M8 |
| Type of electrical connection, field-sided |
M8 |
| Type of plug-in contact, box-sided |
Female (bus) |
| Type of plug-in contact, field sided |
Male (plug) |
| Vulcanized |
false |
| With LED indication |
false |
