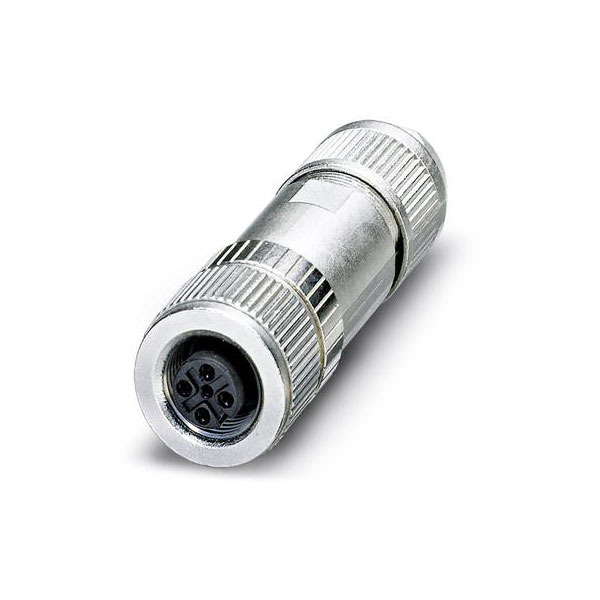

Phoenix Contact 1554526 Bus Connector PROFINET 4-pos Shielded Socket

Phoenix Contact manufactures the SACC-M12FSD-4Q SH PN 1554526, a robust sensor/actuator data cable ideal for industrial automation and control systems. This bus system plug-in connector features a M12 female socket with a reliable and secure connection design. It is typically used in applications requiring precision interfacing between sensors, actuators, and controllers.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	D
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	- - -mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	- - -mm²
Connection	Cut & Clip
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter	1.60mm
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material of contact surface	Nickel
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-M12FSD-4Q SH PN
Nominal Current	1.75A
Nominal Voltage	60V DC
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	1.75A
Rated voltage	48V
Screened	true
Thread size M	N/A
Thread Type	M12
Type of electric connection	Insulation displacement connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
