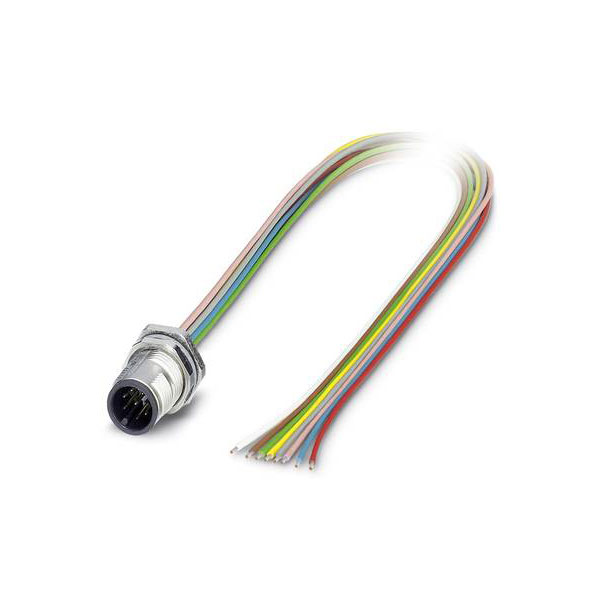

Phoenix Contact 1551914 Flush-Type Connector 8-Pos M12 0.5m TPE Wire

Phoenix Contact manufactures the panel feed-through SACC-DSI-MS-8CON-M12/0,5 SCO, known for its durable and reliable sensor/actuator connections. It features an M12 connector and supports easy and secure panel integration. Typically used in industrial automation, this component ensures efficient electrical connectivity in complex systems.

Connector 1	Cable, open end
Connector 2	M12
Colour	Multicolour
Length	0.5m
Type	Sensor connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.25mm²
Connection	Open end cable
Core cross section	0.25mm²
Degree of protection (IP), mounted	Other
Diameter	1.15mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-DSI-MS-8CON-M12/0,5 SCO
Mounting method	N/A
Nominal Current	2A
Nominal Voltage	30V
Number of control contacts	8
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	2A
Rated voltage	30V
Screw-in thread	N/A
Thread Type	M12
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Male (plug)
With PE-connection	false
With shield connection	false
