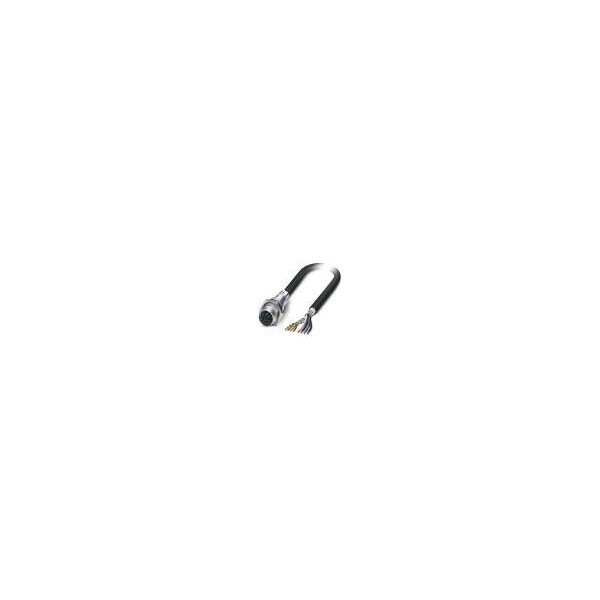

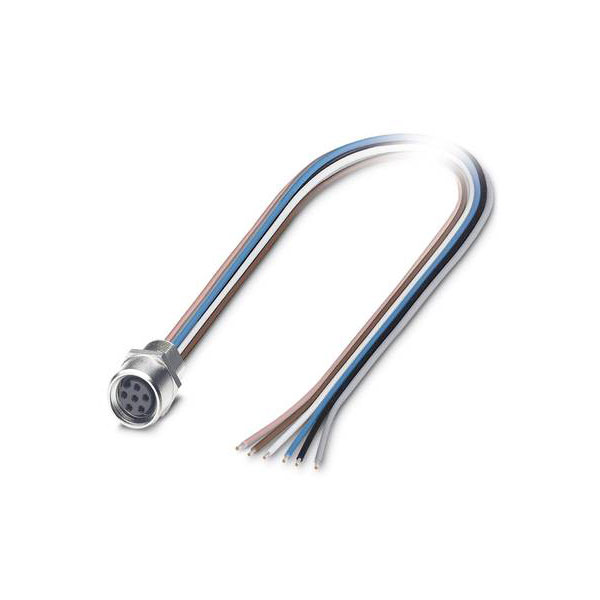

Phoenix Contact 1542677 Sensor/Actuator Socket M8 6-pos 0.5m TPE Litz

Phoenix Contact manufactures the flush-type connector SACC-E-M 8FS-6CON-M 8/0,5, featuring sensor/actuator built-in capabilities. It provides reliable connectivity in compact spaces, suitable for automation systems. The product is ideal for industrial environments requiring robust and efficient component integration.

Connector 1	Cable, open end
Connector 2	M8
Colour	Multicolour
Length	0.5m
Type	Sensor connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.14mm²
Connection	Open end cable
Core cross section	0.14mm²
Degree of protection (IP), mounted	N/A
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
IP Rating	IP67
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	N/A
Misc Attribute	SACC-E-M 8FS-6CON-M 8/0,5
Mounting method	N/A
Nominal Current	1.5A
Number of control contacts	6
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	1.5A
Rated voltage	30V
Screw-in thread	N/A
Thread Type	M8
Type of plug-in contact, inner side	N/A
Type of plug-in contact, outer side	Female (bus)
With PE-connection	false
With shield connection	false
