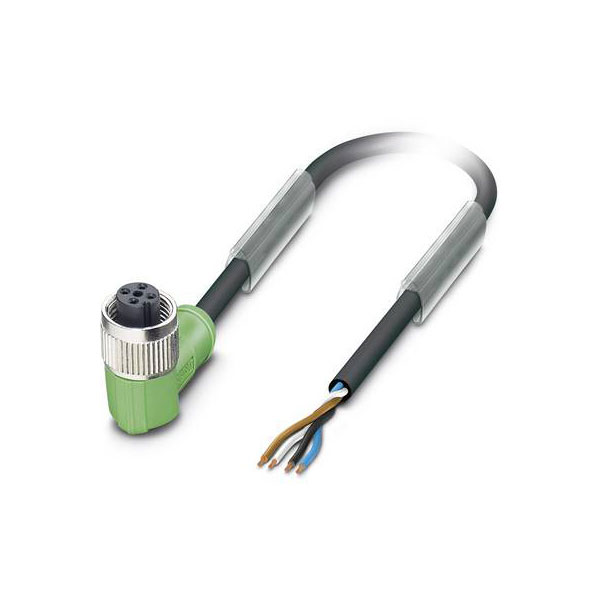

Phoenix Contact manufactures the SAC-4P-10,0-PVC/M12FR BK 1527731, a sensor/actuator cable featuring an angled M12 socket with a free cable end. This cable is part of the PLUSCON Industrial plug series and is specifically designed for reliable signal transmission in industrial environments. Its typical applications include connecting sensors and actuators in automated production systems.
| Connector 1 |
Cable, open end |
| Connector 2 |
M12 |
| Colour |
Black |
| Length |
10m |
| Type |
Sensor connector |
| Cable Length |
10m |
| Cable Type |
Multi-core |
| Coding |
A |
| Colour cable sheath |
Other |
| Connection |
Open end cable |
| Continuity resistance |
N/AmOhm |
| Cross-section (sensor/actuator wiring) |
0.34mm² |
| Degree of protection (IP) |
IP65 |
| Diameter |
1.26mm |
| Halogen free |
true |
| Industrial packaging |
Yes |
| IP Rating |
IP65 |
| Material |
PVC |
| Material contact body |
CuSn |
| Material of cable sheath |
Polyvinyl chloride (PVC) |
| Material of contact surface |
Other |
| Misc Attribute |
SAC-4P-10,0-PVC/M12FR BK |
| Nominal Current |
4A |
| Number of Poles |
4 |
| Permitted cable outer temperature after assembling without vibration |
-25 - 80°C |
| Permitted cable outer temperature during assembling/handling |
-10 - 80°C |
| Positioning cable feed, box-sided |
Angled |
| Positioning cable feed, field-sided |
Other |
| Rated current In |
4A |
| Rated voltage |
250V |
| Screened |
false |
| Thread Type |
M12 |
| Type of electrical connection, box-sided |
M12 |
| Type of electrical connection, field-sided |
Other |
| Type of plug-in contact, box-sided |
Female (bus) |
| Type of plug-in contact, field sided |
N/A |
| Vulcanized |
false |
| With LED indication |
false |
