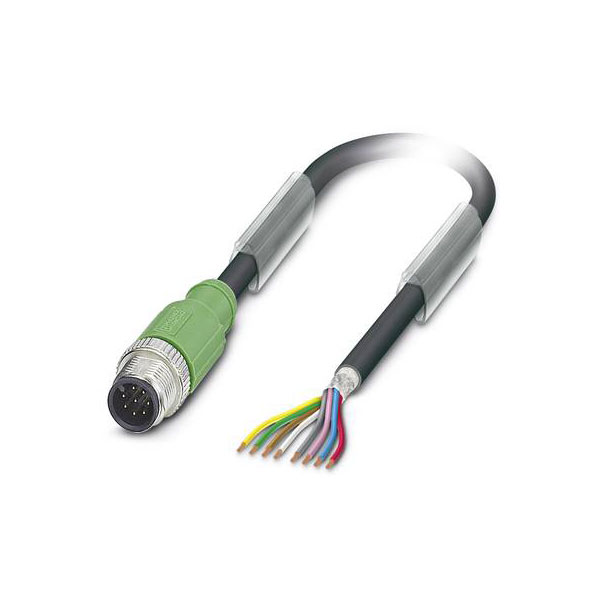

Phoenix Contact 1522781 SAC Sensor/Actuator Cable 3m M12 A-coded Shielded

The Sensor/Actuator cable SAC-8P-M12MS/ 3,0-PUR SH from Phoenix Contact is a robust, pre-fabricated connector featuring an 8-pin M12 male straight design. It is constructed with a durable PUR sheath, making it ideal for use in industrial environments requiring secure sensor or actuator connections. This cable is typically used in automation and manufacturing settings to ensure reliable data transmission and power supply.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	3m
Type	Sensor connector
Cable Length	3m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
Material	PUR
Material contact body	CuZn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-8P-M12MS/ 3,0-PUR SH
Nominal Current	2A
Number of Poles	8
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Other
Positioning cable feed, field-sided	Straight
Rated current In	2A
Rated voltage	30V
Screened	true
Thread Type	M12
Type of electrical connection, box-sided	Other
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
