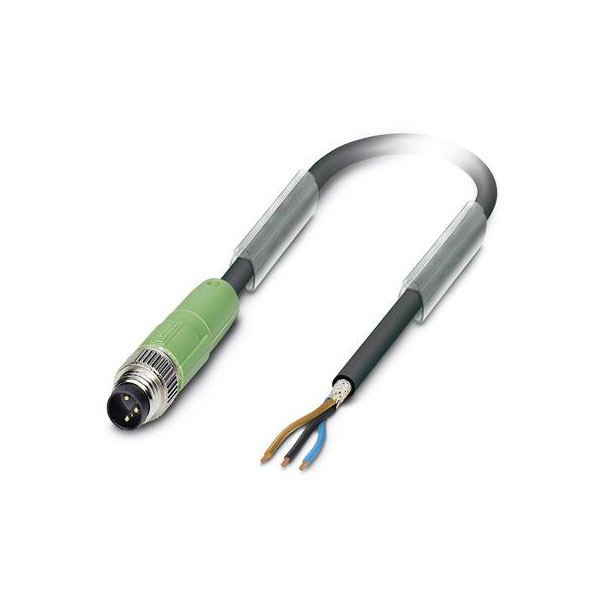

Phoenix Contact 1521643 SAC Sensor/Actuator Cable 10m Shielded PUR Black

The Sensor/Actuator cable SAC-3P-M 8MS/10,0-PUR SH 1521643 by Phoenix Contact features a pre-fabricated connector for easy installation. This robust cable is designed with a polyurethane sheath, offering excellent resistance to mechanical stress. It is typically used in industrial automation for reliable sensor and actuator connectivity.

Connector 1	Cable, open end
Connector 2	M8
Colour	Black
Length	10m
Type	Sensor connector
Cable Length	10m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
IP Rating	IP65
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-3P-M 8MS/10,0-PUR SH
Nominal Current	4A
Number of Poles	3
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Other
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	48V
Screened	true
Thread Type	M8
Type of electrical connection, box-sided	Other
Type of electrical connection, field-sided	M8
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
