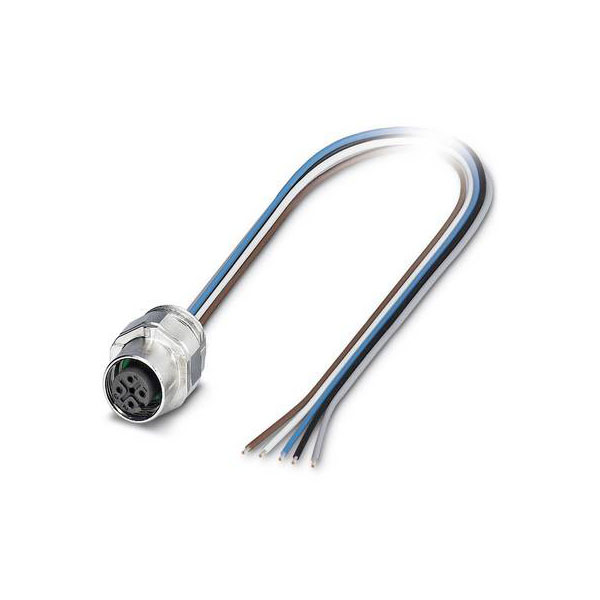

Phoenix Contact 1520042 SACC Connector 5-pos M12 A-coded 0.5m Wire

Phoenix Contact manufactures the flush-type connector SACC-EC-FS-5CON-M16/0,5 SCO, known for its high reliability in sensor and actuator connectivity. This five-position built-in connector features an M16 interface, ensuring a secure connection in industrial applications. It is commonly used for facilitating precise and durable connections in diverse automation environments.

Connector 1	Cable, open end
Connector 2	M12
Colour	Multicolour
Length	0.5m
Type	Sensor connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.34mm²
Connection	Open end cable
Core cross section	0.34mm²
Degree of protection (IP), mounted	N/A
Diameter	1.20mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
IP Rating	IP67
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-EC-FS-5CON-M16/0,5 SCO
Mounting method	N/A
Nominal Current	4A
Nominal Voltage	60V
Number of control contacts	5
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	4A
Rated voltage	60V
Screw-in thread	N/A
Thread Type	M12
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Female (bus)
With PE-connection	false
With shield connection	false
