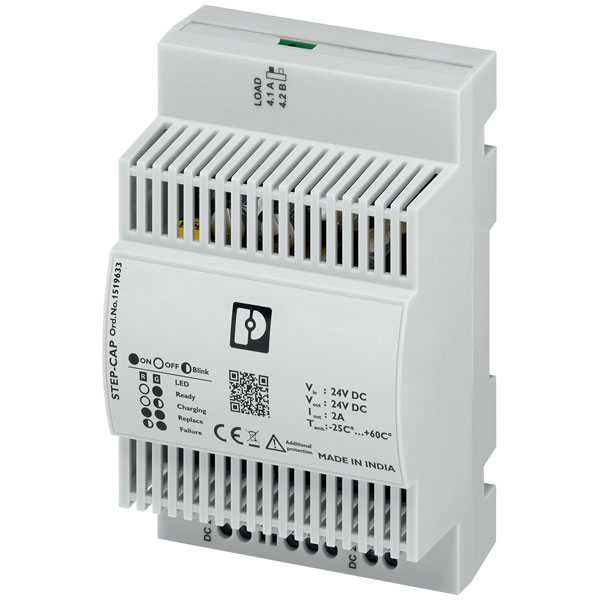

The Phoenix Contact STEP-CAP/24VDC/2/0.4KJ rail-mount UPS is designed for uninterrupted power supply, featuring a 24 VDC input and a capacity of 0.4 kilojoules. It is suitable for installation on DIN rails, providing reliable power backup in industrial settings. Typical applications include safeguarding PLCs and other critical automation equipment against power interruptions.
| Type |
Rail-mount UPS (DIN) |
| Nominal value output current 1 |
2A |
| Auto shut down function |
N/A |
| Bridging time full load |
N/Amin |
| Connections |
Screw connector |
| Construction type |
N/A |
| Depth |
60mm |
| Dimensions (W x H x D) |
80 x 125 x 60mm |
| Efficiency in eco-mode |
N/A% |
| Height |
125mm |
| Input Connection |
Other |
| Input Voltage |
23.7 - 26.5V |
| Max. voltage distortion output (linear load) |
N/A% |
| Maximum input voltage [DC] |
26.5V |
| Minimum Input Voltage [DC] |
23.7V |
| Misc Attribute |
STEP-CAP/24VDC/2/0.4KJ |
| Modular |
N/A |
| Nominal value output voltage 1 [DC] |
24.4V |
| Number of output connections C13 |
N/A |
| Number of output connections C19 |
N/A |
| Number of output connections fixed connection |
N/A |
| Number of output connections French standard (Type E) |
N/A |
| Number of output connections with protective contact CEE 7/3 (type F) |
N/A |
| Number of phases primary |
N/A |
| Number of phases secondary |
N/A |
| Output apparent power |
N/AVA |
| Output power factor |
N/A |
| Overall efficiency |
N/A% |
| Potential free switch contact |
N/A |
| Power Consumption |
N/AW |
| Power Output |
N/AW |
| Primary frequency |
- - -Hz |
| Secondary frequency |
- - -Hz |
| SNMP |
false |
| Suitable for network-management |
N/A |
| USB interface |
N/A |
| USV- technology |
N/A |
| Voltage type |
DC |
| Weight |
233g |
| Width |
80mm |
| With communication interface RS-232 |
N/A |
