Phoenix Contact 1502730 SAC Sensor/Actuator Cable 4P 15m PUR Black-Grey

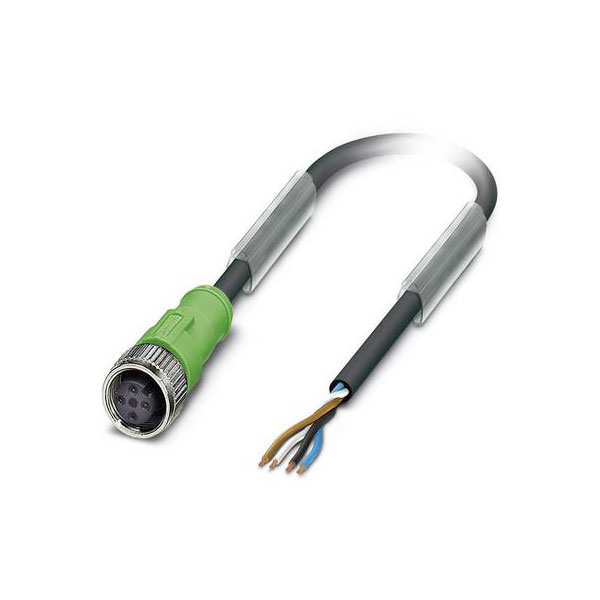

The Phoenix Contact Sensor/Actuator Cable SAC-4P-15,0-PUR/M12FS (1502730) features an M12 socket with a free cable end. This rugged cable is part of the PLUSCON Industrial plug series, ideal for reliable connections in automation systems. Typical applications include connecting sensors and actuators in industrial environments.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	15.00m
Type	Sensor connector
Cable Length	15m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.27mm
Halogen free	true
Industrial packaging	Yes
IP Rating	IP65
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-4P-15,0-PUR/M12FS
Nominal Current	4A
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	250V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
