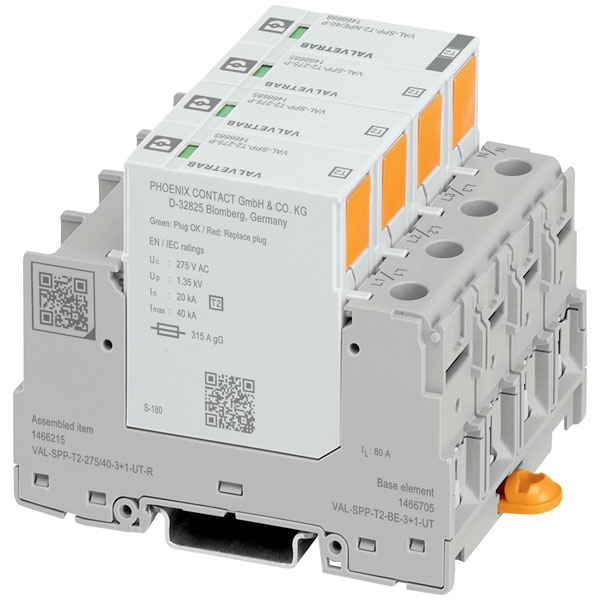

Phoenix Contact 1466215 VAL-SPP-T2 Surge protection 80kA status display

The Phoenix Contact 1466215 VAL-SPP-T2-275/40-3+1-UT surge arrester provides reliable surge protection for switchboards, with a high discharge capacity of 80 kA. Its robust design ensures optimal protection against voltage spikes and surges. It is ideal for safeguarding electrical systems in industrial and commercial settings.

Type	Surge arrester
Category type 2	true
Colour	Grey, Grey-white (RAL 7035)
Construction size	N/A
Degree of protection (IP)	N/A
Depth	71.5mm
Dim	(W x H x D) 53.4 x 96.6 x 71.5 mm
Height	96.6mm
Integrated backup fuse	N/A
Integrated short-circuit protection	N/A
Integrated short-circuit protection selective to fuse gG	N/AA
IP Rating	IP20
Leakage Current	80kA
Leakage-current free	false
Max. conductor cross section flexible (fine-strand)	N/Amm²
Max. conductor cross section solid (solid, stranded)	N/Amm²
Max. continuous voltage AC	N/AV
Max. continuous voltage DC	N/AV
Max. discharge surge current (8/20)	N/AkA
Max. overcurrent protection device, parallel connection (fuse)	315A
Max. overcurrent protection device, series connection (fuse)	80A
Max. PV-voltage	N/AV
Mounting method	N/A
Nominal discharge surge current (8/20)	N/AkA
Nominal voltage AC	N/AV
Nominal voltage DC	N/AV
Number of conductors (without earthing)	N/A
Operating Temperature	- 40 - 85°C
Pick-up time (details)	≤ 25ns
Short-circuit breaking capacity (Isccr)	N/AkA
Signalling at the device	Optical
Surge protection for	Switchboards
System configuration DC	false
System configuration IT	false
System configuration other	false
System configuration TN	false
System configuration TN-C	false
System configuration TN-C-S	false
System configuration TN-S	true
System configuration TT	false
Voltage protection level	N/AkV
Voltage protection level L-N	N/AkV
Voltage protection level N-PE	N/AkV
Width	53.4mm
With remote signalling contact	N/A
