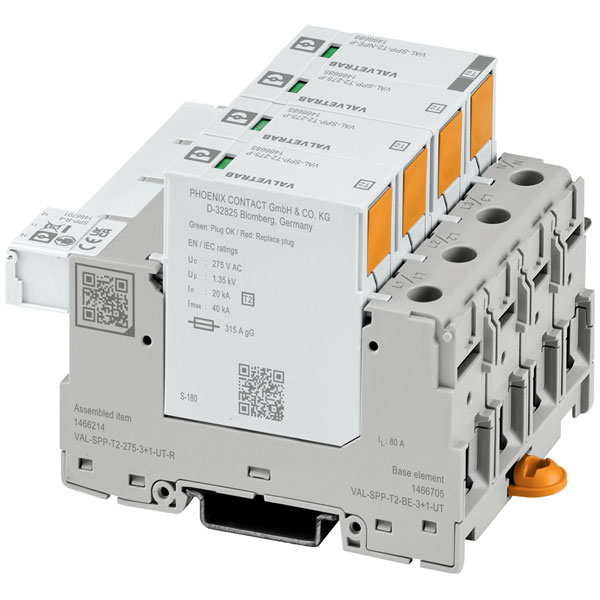

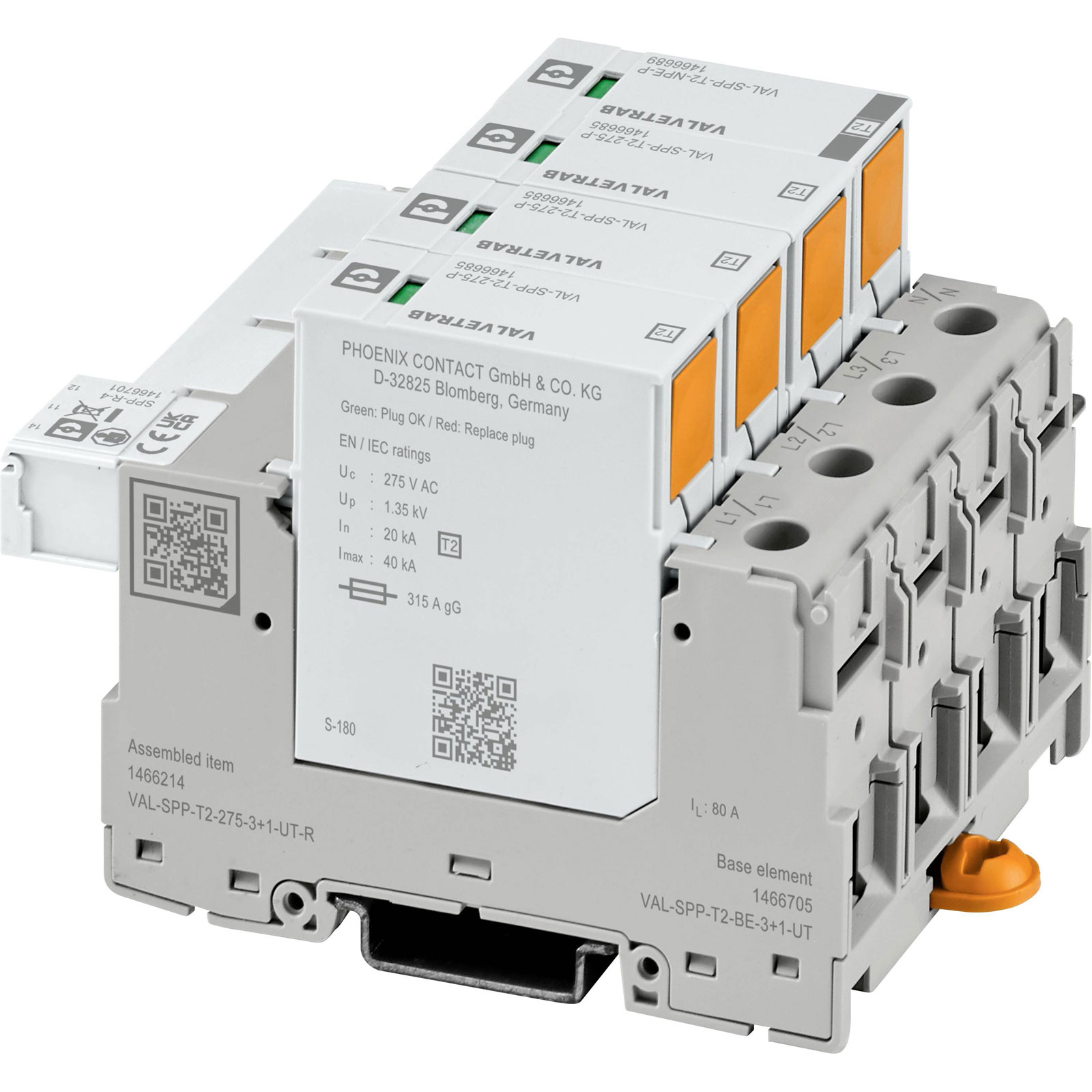

Phoenix Contact 1466214 VAL-SPP-T2 Surge arrester 20kA status display

The Phoenix Contact 1466214 VAL-SPP-T2-275-3+1-UT-R surge arrester offers robust surge protection for switchboards, supporting a maximum surge current of 20 kA. Designed for electrical installations, it ensures the safety of equipment by mitigating high voltage spikes. This single-piece unit is ideal for protecting sensitive systems in industrial and commercial applications.

Type	Surge arrester
Category type 2	true
Colour	Grey, Grey-white (RAL 7035)
Construction size	Other
Degree of protection (IP)	N/A
Depth	71.5mm
Dim	(W x H x D) 71.2 x 109.1 x 71.5 mm
Height	109.1mm
Integrated backup fuse	true
Integrated short-circuit protection	N/A
Integrated short-circuit protection selective to fuse gG	N/AA
IP Rating	IP20
Leakage Current	20kA
Leakage-current free	false
Max. conductor cross section flexible (fine-strand)	35mm²
Max. conductor cross section solid (solid, stranded)	1.5mm²
Max. continuous voltage AC	275V
Max. continuous voltage DC	N/AV
Max. discharge surge current (8/20)	40kA
Max. overcurrent protection device, parallel connection (fuse)	315A
Max. overcurrent protection device, series connection (fuse)	80A
Max. PV-voltage	N/AV
Mounting method	DIN rail (top hat rail) 35 mm
Nominal discharge surge current (8/20)	20kA
Nominal voltage AC	N/AV
Nominal voltage DC	N/AV
Number of conductors (without earthing)	N/A
Operating Temperature	- 40 - 85°C
Pick-up time (details)	≤ 25ns
Short-circuit breaking capacity (Isccr)	50kA
Signalling at the device	Optical
Surge protection for	Switchboards
System configuration DC	false
System configuration IT	false
System configuration other	false
System configuration TN	false
System configuration TN-C	false
System configuration TN-C-S	false
System configuration TN-S	true
System configuration TT	false
Voltage protection level	1.6kV
Voltage protection level L-N	1.35kV
Voltage protection level N-PE	1.5kV
Width	71.2mm
With remote signalling contact	true
