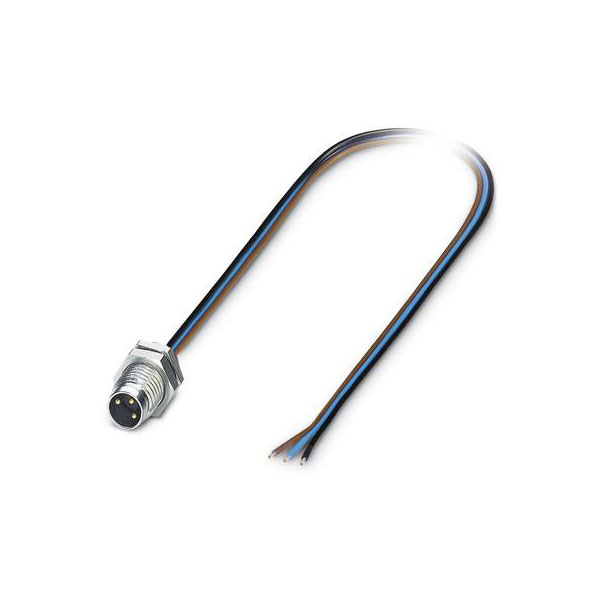

Phoenix Contact 1453478 Connector M8 3-POS Rear/Screw Mount 0.5m TPE Wire

The Phoenix Contact flush-type connector SACC-DSI-M 8MS-3CON-M 8/0,5 is a sensor/actuator built-in connector designed for reliable and robust connections. It features a durable construction for secure connectivity in various industrial environments. This connector is commonly used in automation systems and manufacturing processes.

Type	Sensor connector
Number of Contacts	3
Connector Size	M8
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.25mm²
Connection	Open end cable
Connector 1	Cable, open end
Connector 2	M8 plug, built-in
Core cross section	0.25mm²
Degree of protection (IP), mounted	N/A
Diameter	1.50mm
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
IP Rating	IP67
Length	0.50m
Material	PVC
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	N/A
Misc Attribute	SACC-DSI-M 8MS-3CON-M 8/0,5
Mounting method	N/A
Nominal Current	4A
Number of control contacts	3
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	4A
Rated voltage	48V
Screw-in thread	N/A
Thread Type	M8
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Male (plug)
With PE-connection	false
With shield connection	false
