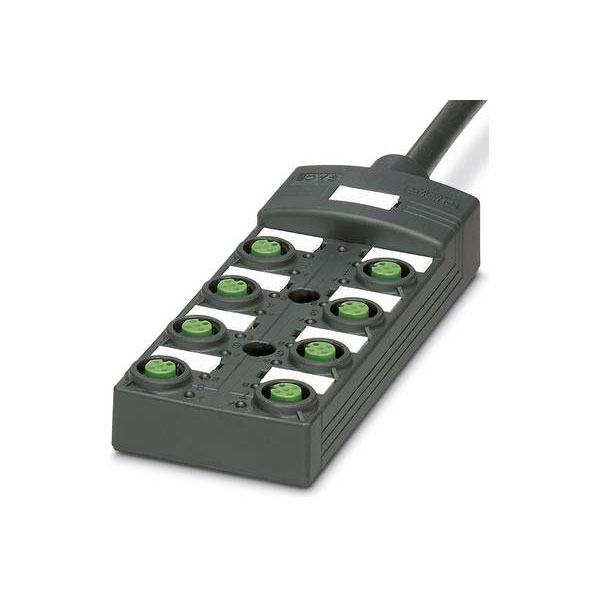

The Phoenix Contact SACB-8/16-L-10,0PUR SCO P 1452738 is a passive sensor and actuator box with an M12 splitter and plastic thread, designed for industrial applications. Manufactured by Phoenix Contact, it is typically used for efficient signal distribution and connection in automation systems. This product ensures robust connectivity and reliability in demanding environments.
| Type |
Sensor & actuator box (passive) |
| Cable Length |
10m |
| Cable length configurable |
false |
| Cable outer diameter for cable gland |
- - -mm |
| Case Material |
PBT |
| Colour |
Black |
| Configuration |
Double |
| Connectable conductor cross section |
- - -mm² |
| Connection |
Open end cable |
| Connection for NPN-sensors |
false |
| Connector type (distribution boxes) |
M12 Speedcon receptacle |
| Degree of protection (IP) |
IP65 |
| Degree of protection (NEMA) |
N/A |
| Depth |
149mm |
| Diameter contact female |
N/Amm |
| Explosion safety category for dust |
Other |
| Explosion safety category for gas |
Other |
| Fix cable version suitable for cable guide chain |
false |
| Height |
23mm |
| Housing Colour |
Other |
| Housing Material |
N/A |
| Industrial packaging |
Yes |
| IP Rating |
IP65 |
| Length |
148.8mm |
| Length of the preassembled cable |
10m |
| Material contact body |
N/A |
| Material insulation body |
Polyamide (PA) |
| Material of contact surface |
Gold |
| Max. current carrying capacity per I/O signal |
N/AA |
| Max. current carrying capacity per socket |
2A |
| Max. power rating per slot |
4A |
| Max. total current |
12A |
| Maximum Temperature |
+80°C |
| Min. temperature |
-25°C |
| Misc Attribute |
SACB-8/16-L-10,0PUR SCO P |
| Number of channels per connector slot |
2 |
| Number of pins |
5 |
| Number of poles sensor/actuator slots |
5 |
| Number of sensor-/actuator-slots |
8 |
| Number of splitters |
8-way |
| Operating Temperature |
-25 - 80°C |
| Operating Voltage |
24 - 24V |
| Pollution degree |
N/A |
| Power rating (total) |
12A |
| Power rating per I/O |
2A |
| Rated voltage |
24V |
| Status indicator |
LED |
| Thread sleeves sensor/actuator slots |
N/A |
| Total no. of pins |
5 |
| Trunk line |
Yes |
| Type of branches for sensor-/actuator cables |
M12 |
| Type of connector for trunk line |
N/A |
| Width |
54mm |
| With LED indication |
true |
| With potential separation |
false |
