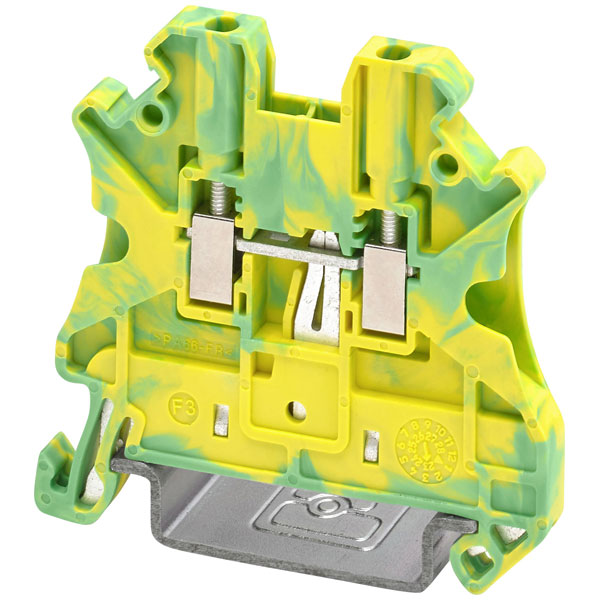

Phoenix Contact 1452318 pg Terminal Screws 50 pcs 1000V 17.5A 2 connections

The Phoenix Contact 1452318 PG terminal facilitates secure and reliable continuity in switchboard terminals. Featuring robust screws, these serial terminals are ideal for use in various electrical installation applications. Well-suited for organising conductors, they ensure efficient control panel setups.

Type	PG terminal
Pitch	4.2mm
No. of Ways	2
No. of Levels	1
Termination	Screw
Width	4.15mm
Closing plate required	true
Colour	Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 1.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.14 - 1.5mm²
Connection	Screws
Depth	46.9mm
Height	48mm
Inflammability class of insulation material according to UL94	V0
Material insulation body	Thermoplastic
Misc Attribute	UT 1,5-PE
Mounting method	DIN rail (top hat rail) 35 mm
Number of clamp positions per level	2
Number of levels	1.0
Operating Temperature	-60 - 110°C
PEN function possible	N/A
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
