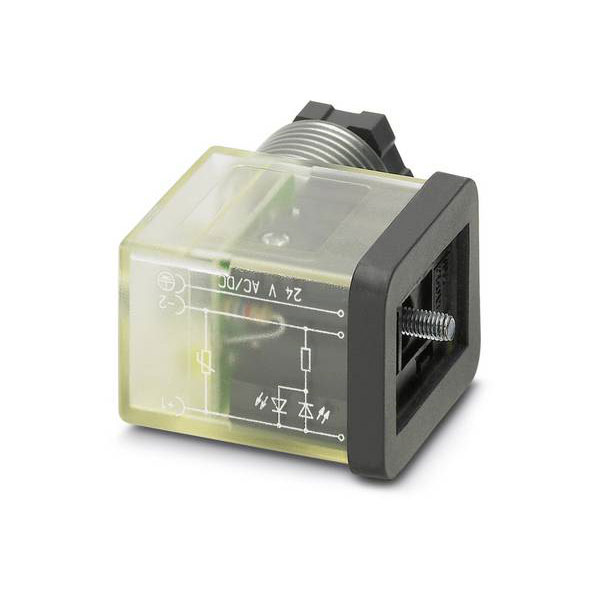

Phoenix Contact 1452204 Valve Connector M16 Gland 3-pos 1 LED 24V

Phoenix Contact manufactures the valve connector SACC-VB-3CON-M16/B-1L-SV 24V, known for its robust design and M16 connection. This connector is designed for 24V applications, featuring three contacts suitable for industrial automation systems. Commonly used in machinery and process industries, it ensures reliable electrical connections in demanding environments.

Type	SACC-VB-3CON-M16/B-1L-SV 24V
Connectable conductor cross section	0.25 - 1.5mm²
Degree of protection (IP), mounted	IP65
For cable outer diameter	6 - 8mm
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
Material of contact surface	Other
Min. number of insertion cycles	50
Misc Attribute	SACC-VB-3CON-M16/B-1L-SV 24V
Number of Poles	3
Operating Temperature	-25 - 60°C
Pollution degree	3
Rated current	1.5A
Rated voltage	24V
With PE-connection	false
With status indication	true
