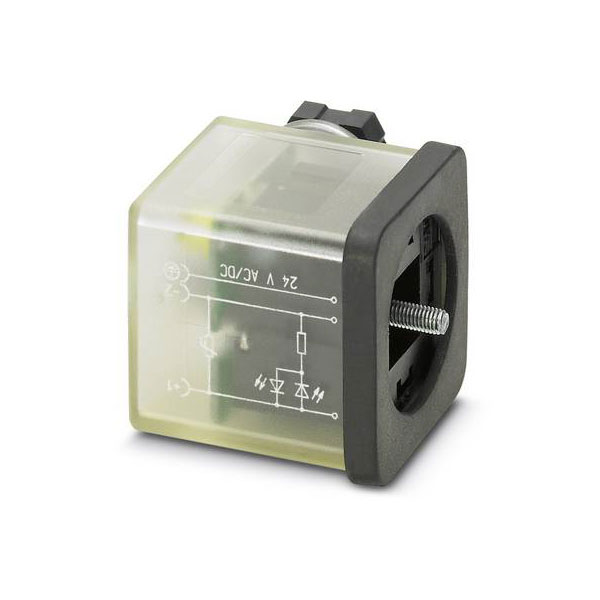

Phoenix Contact 1452149 SACC Valve Connector 3-pos Type A 1 LED 24V M16

Phoenix Contact offers the valve connector SACC-VB-3CON-M16/A-1L-SV 24V, model number 1452149, which features a robust M16 connector design for secure and reliable electrical connections. This connector supports a 24V power supply and is suitable for industrial automation and control applications. It is typically used in environments requiring sturdy connections, such as machinery and process control systems.

Type	SACC-VB-3CON-M16/A-1L-SV 24V
Connectable conductor cross section	0.25 - 1.5mm²
Degree of protection (IP), mounted	IP65
For cable outer diameter	6 - 8mm
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
Material of contact surface	Other
Min. number of insertion cycles	50
Misc Attribute	SACC-VB-3CON-M16/A-1L-SV 24V
Number of Poles	3
Operating Temperature	-25 - 60°C
Pollution degree	3
Rated current	1.5A
Rated voltage	24V
With PE-connection	false
With status indication	true
