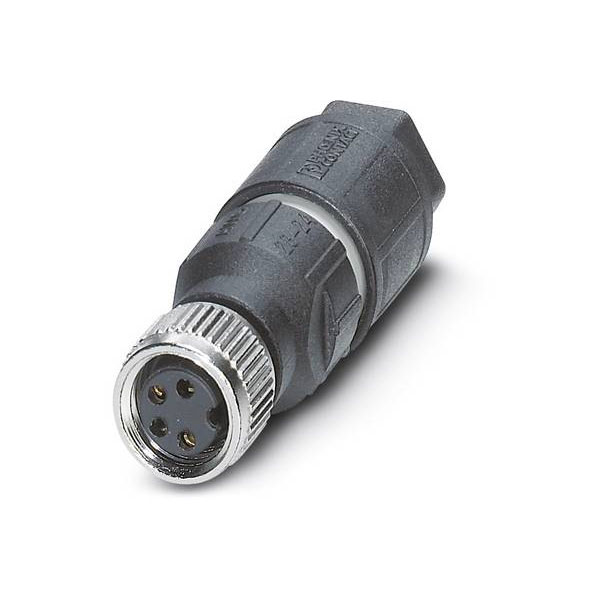

Phoenix Contact 1441079 SACC Plug-in Connector 4-pos M8 Zinc IDC 2.5-5mm

Phoenix Contact manufactures the sensor/actuator plug-in connector SACC-M 8FS-4QO-0,5-M, known for its robust and compact design. It features a 4-position female socket with high ingress protection, suitable for demanding industrial environments. Typical applications include automation systems where reliable sensor and actuator connections are essential.

Connector 1	M8
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-25 - 80°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.50mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 0.5mm²
Connectable conductor cross section multi-wired	0.25 - 0.5mm²
Connectable conductor cross section solid-core	0.25 - 0.5mm²
Connection	Screw terminal
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter	1.55mm
Diameter connector	12.5mm
For cable outer diameter	2.5 - 5mm
Housing Material	Plastic
Inflammability class of insulation material according to UL94	HB
Material of contact surface	Nickel
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-M 8FS-4QO-0,5-M
Nominal Current	4A
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	4A
Rated voltage	30V
Screened	false
Thread size M	N/A
Thread Type	M8
Type of electric connection	Insulation displacement connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
