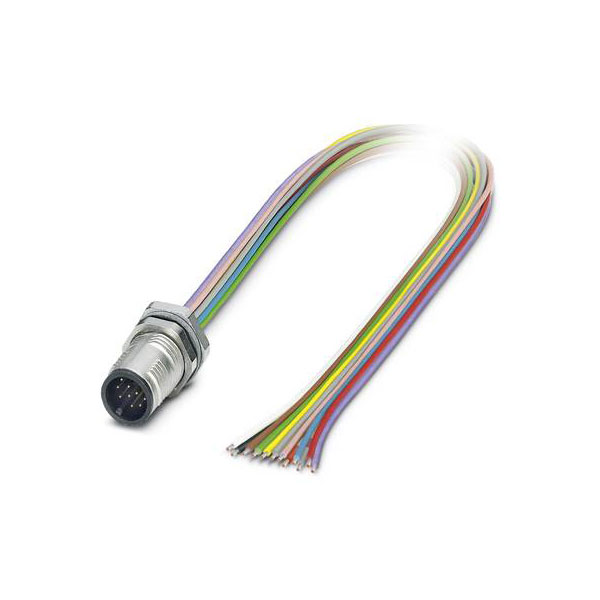

Phoenix Contact 1437122 SACC Flush Connector 12-Pos. M12 Halogen-Free

The flush-type connector SACC-DSI-MS-12CON-M12/0,5 SCO 1437122 from Phoenix Contact features a robust design suitable for sensor and actuator connections. It is designed for embedded applications, ensuring reliable connectivity in industrial environments. This connector is commonly used for ensuring secure and efficient electrical connections within automation systems.

Connector 1	Cable, open end
Connector 2	M12
Colour	Multicolour
Length	0.5m
Type	Sensor connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.14mm²
Connection	Open end cable
Core cross section	0.34mm²
Degree of protection (IP), mounted	Other
Diameter	1.10mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
IP Rating	IP67
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-DSI-MS-12CON-M12/0,5 SCO
Mounting method	N/A
Nominal Current	1.5A
Nominal Voltage	30V
Number of control contacts	12
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	1.5A
Rated voltage	30V
Screw-in thread	N/A
Thread Type	M12
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Male (plug)
With PE-connection	false
With shield connection	false
