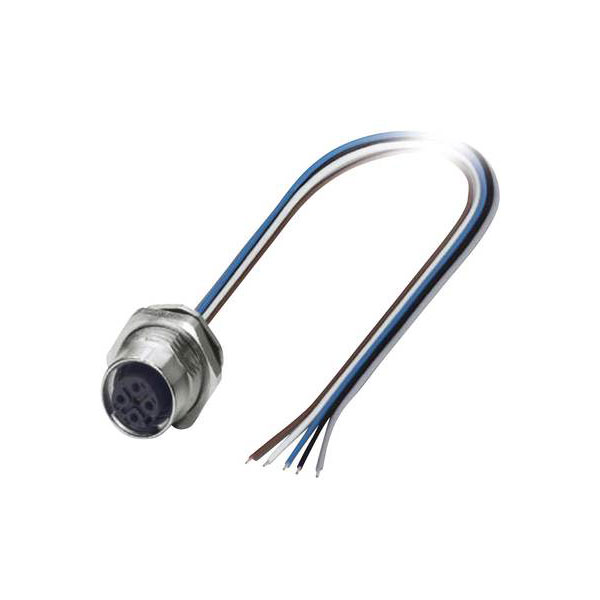

Phoenix Contact 1419658 Sensor/actuator M12 socket 5-pin 0.5m cable

Phoenix Contact manufactures the 1419658 sensor/actuator built-in connector featuring an M12 socket with five pins and a 0.50 m built-in connection. This product is ideal for robust connections in industrial automation systems where secure sensor and actuator interfacing is required. Typical applications include machine construction and process automation systems.

Connector 1	Cable, open end
Connector 2	M12
Length	0.5m
Type	Sensor connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.75mm²
Connection	Open end cable
Core cross section	0.34mm²
Degree of protection (IP), mounted	Other
Diameter	2.60mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material	PUR
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-DSI-M12FS-5CON-M16/0,5
Mounting method	N/A
Nominal Current	4A
Nominal Voltage	250V
Number of control contacts	5
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	4A
Rated voltage	60V
Screw-in thread	N/A
Thread Type	M12
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Female (bus)
With PE-connection	false
With shield connection	false
