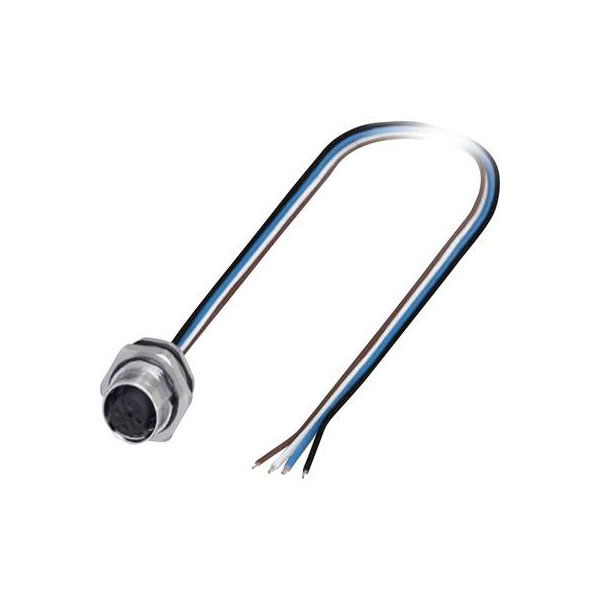

Phoenix Contact 1419632 M12 4-Pin Sensor/Actuator Connector 0.5m Cable

Phoenix Contact manufactures the 1419632 sensor/actuator built-in connector, which is an M12 socket designed for easy integration. This connector features a 0.50 m cable and has 4 pins, suitable for various sensor and actuator connections. It is typically used in industrial automation and machinery applications for reliable signal transmission.

Connector 1	Cable, open end
Connector 2	M12
Length	0.5m
Type	Sensor connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.34mm²
Connection	Open end cable
Core cross section	0.34mm²
Degree of protection (IP), mounted	Other
Diameter	1.20mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material	PUR
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-DSI-M12FS-4CON-M16/0,5
Mounting method	N/A
Nominal Current	4A
Nominal Voltage	250V
Number of control contacts	4
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	4A
Rated voltage	250V
Screw-in thread	N/A
Thread Type	M12
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Female (bus)
With PE-connection	false
With shield connection	false
