Phoenix Contact 1013025 PATG 1/15 Conductor Marker Slide-On 1000 pieces

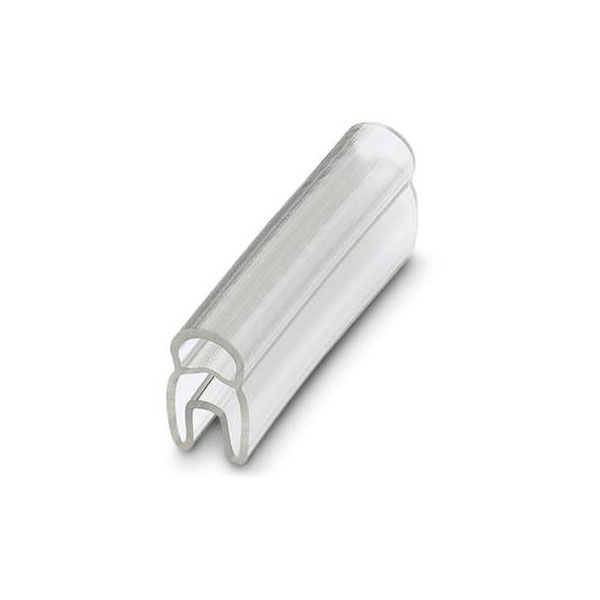

The Phoenix Contact 1013025 PATG 1/15 badge features a thread fitting type and a writing area of 15 x 4 mm. It is transparent and white, designed for industrial labelling and identification. Typical applications include cable processing and use as steel identifiers.

Type	Badge
Colour	White
Material	PVC
Fitting type	Thread
Height	5.15mm
Industrial packaging	Yes
Max Cable Diameter	2.5mm
Max. temperature	+80°C
Min. temperature	-50°C
Misc Attribute	PATG 1/15
Self adhesive mounting	false
Series	PATG
Suitable for outside Ø (min.)	1.50mm
Width	15mm
Writing area	15 x 4 mm
Writing area length	15mm
Writing area width	4mm
