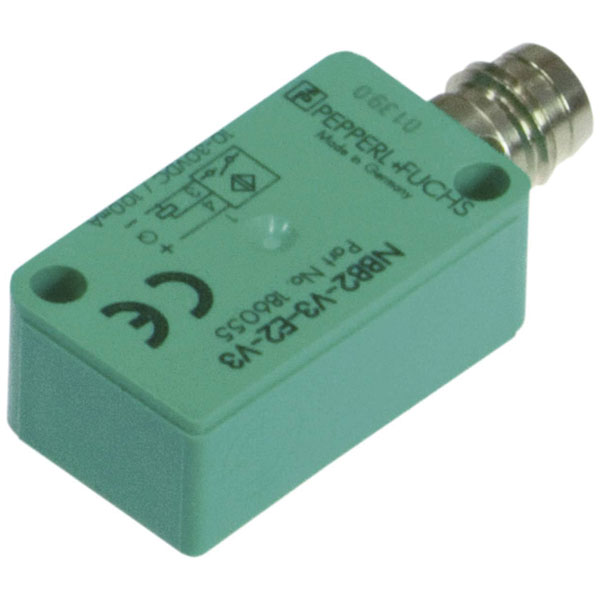

Pepperl+Fuchs NBB2-V3-E2-V3 Inductive Sensor Shielded PNP 10x16 mm

The Pepperl+Fuchs inductive proximity sensor, model NBB2-V3-E2-V3, is a compact 10 x 16 mm device with a shielded PNP output. This sensor is ideal for applications requiring precise non-contact detection of metal objects in industrial automation. Typical uses include monitoring and controlling machinery, conveyor systems, and production lines.

Type	Inductive proximity sensor
Connector	M8 (3-pin)
Contact Type	1 maker
Dim	(L x W x H) 27.8 x 10 x 16 mm
Enclosure material	PBT
Height	16mm
Installation type	shielded
IP Rating	IP67
Length	27.8mm
Max. operating voltage	30V DC
Maximum Temperature	70°C
Min. operating voltage	10V DC
Min. temperature	-25°C
Operating Voltage	10 - 30 V DC
Outputs	PNP
Size	10 x 16 mm
Switching distance (max.)	2mm
Switching Frequency	1000Hz
Width	10mm
