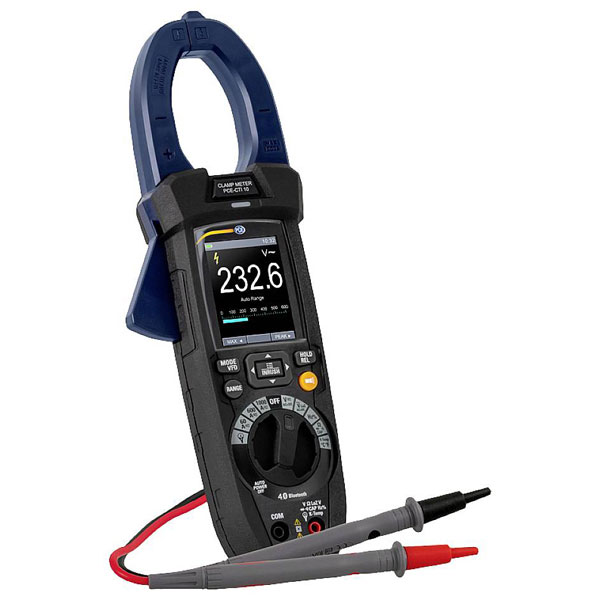

PCE Instruments PCE-CTI 10 Clamp Meter Measures Up to 1500V 1000A AC/DC

PCE Instruments PCE-CTI 10 is a versatile digital multimeter designed for precise voltage, current, and frequency measurements. This clamp meter allows for non-contact current readings, making it ideal for electrical testing and troubleshooting in various settings. Typical applications include installation, maintenance, and repair tasks in both residential and industrial environments.

Type	Clamp meter
Maximum DC Current Measurement	1500V
Maximum AC Current Measurement	1500V
Display Count	9999
A AC reading range (min.)	100A
A DC reading range (max.)	1000A
AC resistance	300kO
Amperage reading range AC (max.)	1000A
Amperage reading range DC (min.)	0A
Basic Accuracy	0.2%
Calibrated to	Manufacturer's standards (no certificate)
Current reading	AC/DC
Dc Resistance	1mO
Dimensions	(L x W x H) 100 x 45 x 275 mm
Display	Digital
Height	275mm
Interfaces	Bluetooth®
Length	100mm
Measurement type (details)	True RMS
Opening range of current clamps	45mm
Temperature	-40 °C - +600 °C.°C
V AC reading range (min.)	0V
Voltage metering	AC/DC
Weight	481g
Width	45mm
