PB Fastener 1202-CR-SW Cable Grommet Dia10mm Neoprene Black 1 piece

Image Representative of Range

PB Fastener 1202-CR-SW Cable Grommet Dia10mm Neoprene Black 1 piece

PB Fastener
Order Code:

12-6187

Brand: PB Fastener MPN: 1202-CR-SW EAN-13: 2050000378577
Qty Unit Price (Ex VAT)
2+ £2.03
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
59 in stock, despatched in 4 working days

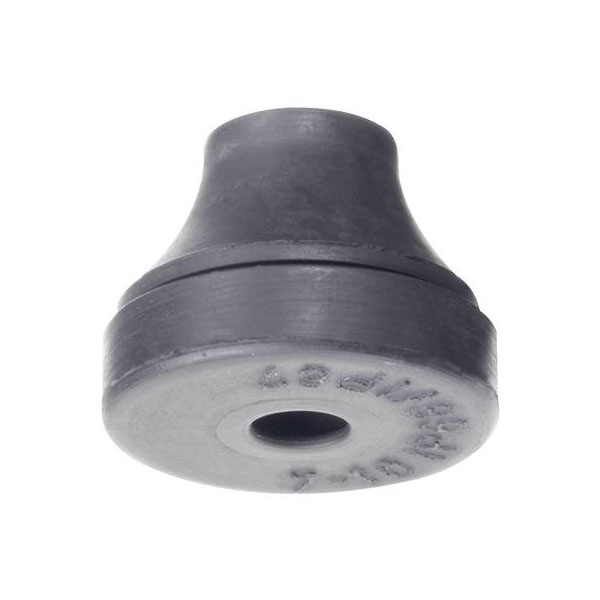

The PB Fastener 1202-CR-SW cable grommet accommodates terminals up to a 10 mm diameter and board thickness up to 4 mm. Made of black neoprene, it features a cable bushing hole of 20.5 mm and dimensions of 20.5x6.2x25.5 mm. This grommet is ideal for securing and insulating cables in electronic and industrial applications.
Colour Black
Cable Diameter Max 7.0 - 10.0mm
Type Cable grommet
Board thickness (max.) 4mm
Clamp Diameter 7mm
Diameter 10mm
Dimensions (Ø x H) 25.5 mm x 20.5 mm
Halogen-free No
Height 20.5mm
IP Rating IP66/67 (tested according to DIN VDE 0470 Part 1/11.92)
Material CR (VTD-93)
Min. temperature -30°C
Mounting hole M20
Temperature Range -30 - +110°C
