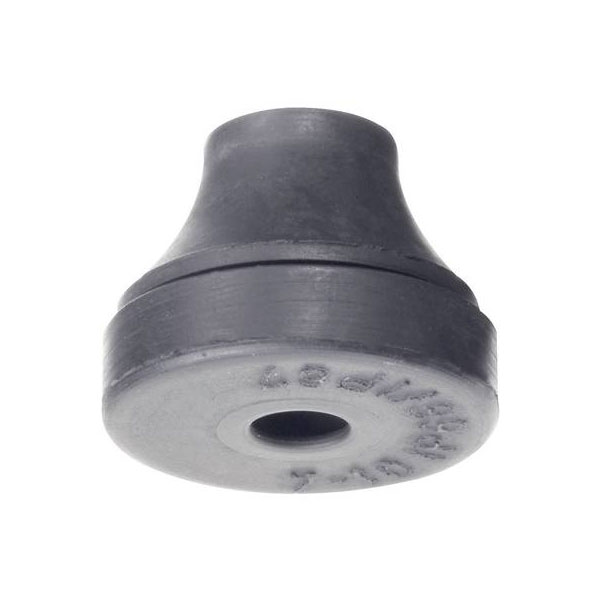

PB Fastener 1103-CR-SW Cable Grommet Neoprene Dia14mm Board 4mm Black

Image Representative of Range

PB Fastener 1103-CR-SW Cable Grommet Neoprene Dia14mm Board 4mm Black

PB Fastener
Order Code:

12-6184

Brand: PB Fastener MPN: 1103-CR-SW EAN-13: 2050000378584
Qty Unit Price (Ex VAT)
2+ £2.04
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
6 in stock, despatched in 4 working days

The PB Fastener 1103-CR-SW cable grommet is designed for terminals with a maximum diameter of 14 mm and supports a board thickness up to 4 mm. Made from black neoprene, it measures 22.5 x 6.0 x 28.0 mm and is ideal for securing cables and wiring in electronic applications. This component is often used in cable mounting to provide a tidy and protected passage through panels.
Colour Black
Cable Diameter Max 10.0 - 14.0mm
Type Cable grommet
Board thickness (max.) 4mm
Clamp Diameter 10mm
Diameter 14mm
Dimensions (Ø x H) 28 mm x 22.5 mm
Halogen-free No
Height 22.5mm
IP Rating IP66/67 (tested according to DIN VDE 0470 Part 1/11.92)
Material CR (VTD-93)
Min. temperature -30°C
Mounting hole PG16
Temperature Range -30 - +110°C
