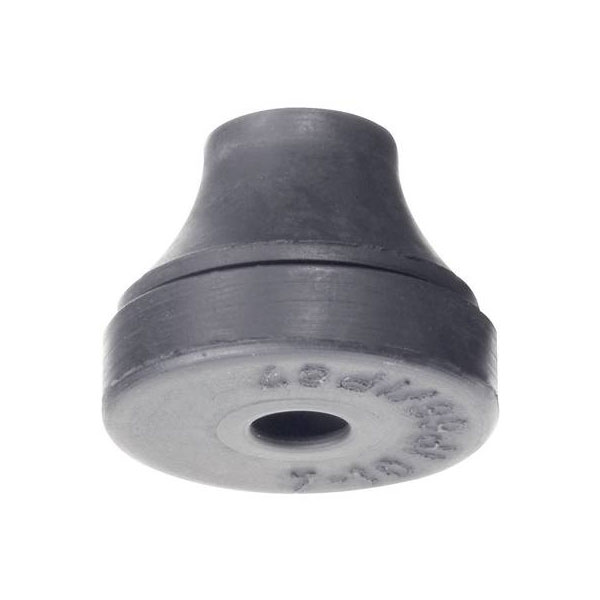

The PB Fastener 1101-CR-SW cable grommet is made of black neoprene and accommodates terminals up to 7 mm in diameter with a maximum board thickness of 4 mm. It is designed for easy cable mounting and provides a secure fit within a 16.0 mm hole. This product is typically used to protect cables and wiring in electronic installations.
Type |
Cable grommet |
(Ø) |
21mm |
Board thickness (max.) |
4mm |
Cable diameter (details) |
5.0 - 7.0mm |
Clamp Ø |
5mm |
Dim |
(Ø x H) 21 mm x 185.5 mm |
Factory colour |
Black |
Halogen-free |
No |
Height |
185.5mm |
IP rating |
IP66/67 (tested according to DIN VDE 0470 Part 1/11.92) |
Manufacturer part # |
1101-CR-SW |
Material |
Neoprene |
Material (details) |
CR (VTD-93) |
Min. temperature |
-30°C |
Misc Attribute |
1101-cr-sw |
Mounting hole |
PG9/M16 |
RoHS-compliant |
Yes |
Temperature range |
-30 - +110°C |
Terminal Ø (max.) |
7mm |
