Panasonic SF2D12D Relay 12V DC 8A 2 Makers 2 Breakers 1pc

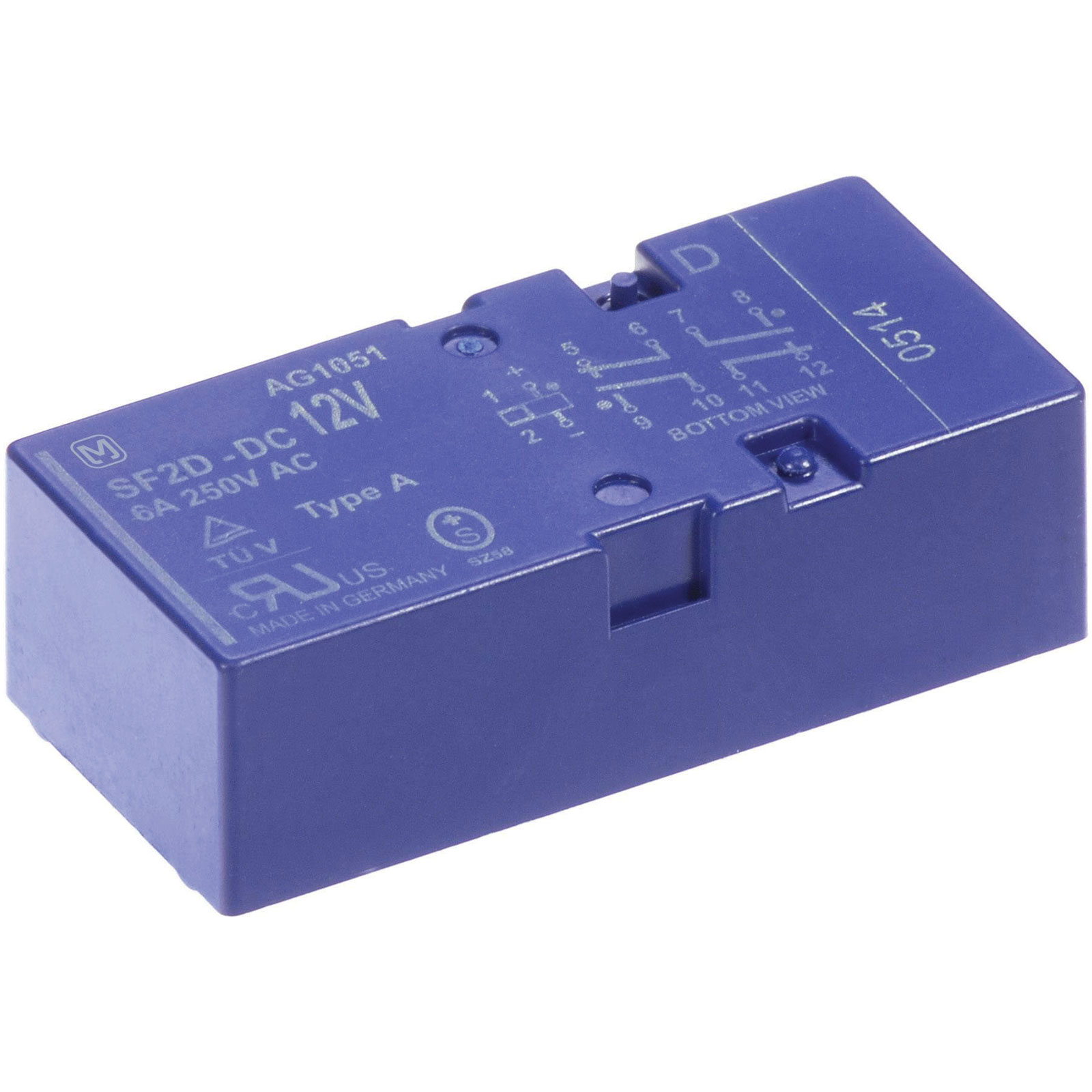

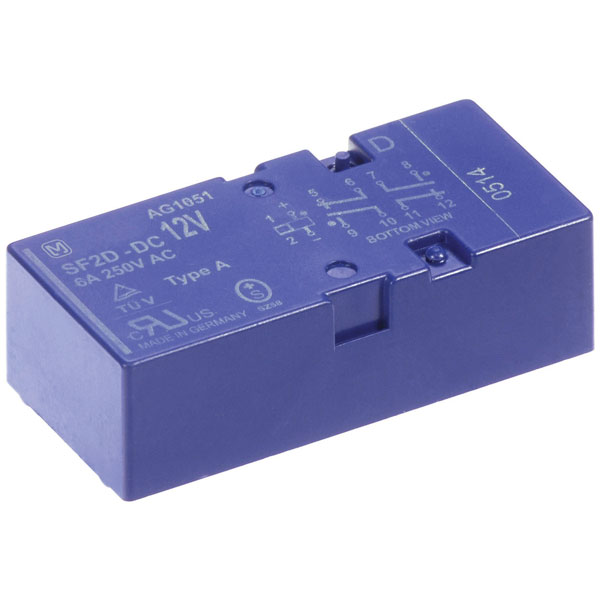

Image Representative of Range

Panasonic SF2D12D Relay 12V DC 8A 2 Makers 2 Breakers 1pc

Panasonic
Standard range
Order Code:

05-7054

Brand: Panasonic MPN: SF2D12D
Qty Unit Price (Ex VAT)
1+ £21.74
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
51 in stock, despatched in 4 working days

The Panasonic SF2D12D PCB relay is a mini relay with a 12 V DC coil voltage capable of handling 8 A, and it features two makers and two breakers. This printed circuit board relay is commonly used for switching applications in various electronic devices. It is ideal for compact and efficient electrical connections on PCBs in both consumer electronics and industrial equipment.
Type PCB relay
Coil nominal voltage 12V DC
Connection Solder pins
Contact material AgSnO2 + Au
Control mode monostable, 1 coil
Dim (L x W x H) 53.3 x 25 x 16 mm
Durability 10 7 switching cycles
Fall time 7ms
Height 16mm
Length 53.3mm
Max. temperature +70°C
Min. pick-up voltage 9V DC
Min. temperature -40°C
Misc Attribute SF2D12D
Resistance (coil) 288Ω
Response time 17.5ms
Switching current (max.) 8A
Width 25mm
