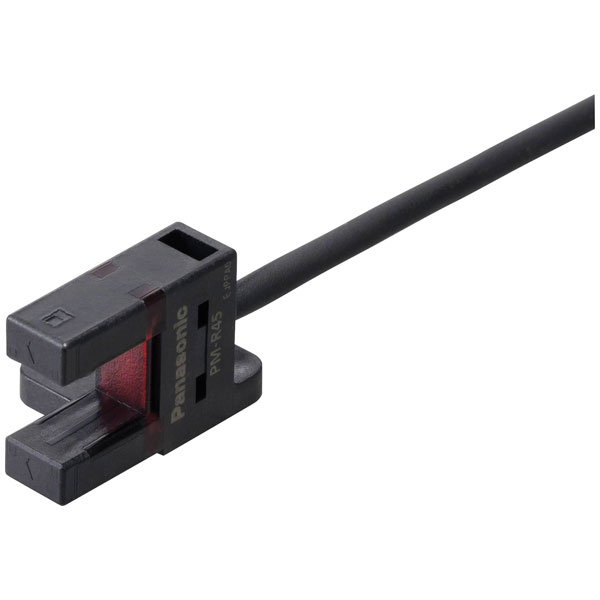

Panasonic PM-R45 Reflective Light Barrier: Compact Dual Outputs 5-24V DC

The Panasonic Reflective Light Barrier PM-R45 is a versatile sensor designed for detecting presence using Light-ON or Dark-ON modes. It operates within a voltage range of 5 to 24 V DC, ideal for precise automation tasks. Common applications include industrial automation and safety monitoring systems.

Type	Reflective light barrier
IP Rating	IP64
Cable Length	1.00m
Connector	Cable, open end
Dim	(L x W x H) 21.3 x 13 x 13.7 mm
Enclosure material	PBT
Height	13.7mm
Length	21.3mm
Max. operating voltage	24V DC
Maximum Temperature	+55°C
Min. operating voltage	5V DC
Min. temperature	-25°C
Model	R
Operating Voltage	5 - 24 V DC
Output Type	NPN
Transmitter type	LED IR
Wavelength	855nm
Width	13mm
