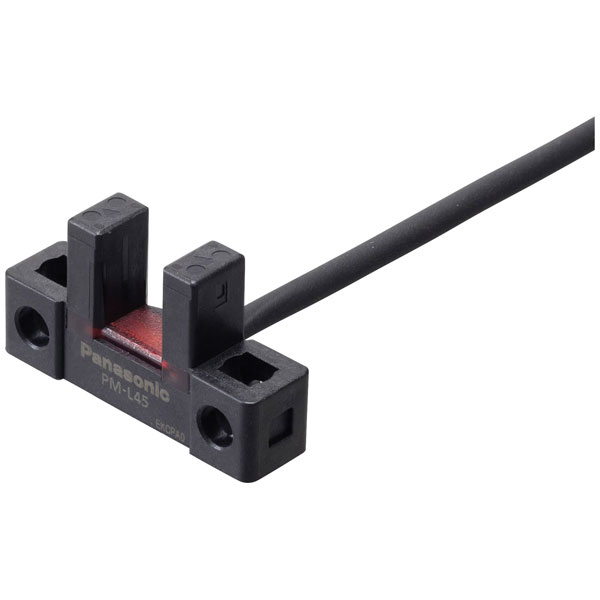

Panasonic PM-L45-P-C3 Light Barrier 5-24V Fork Light Beam Transistor Outputs

Panasonic's PM-L45-P-C3 is a reflective light barrier designed for precise detection with light-on and dark-on modes. It operates on a 5 - 24 V DC supply and is suitable for applications needing reliable object detection. This light barrier is ideal for use in automation and security systems where accurate sensing is crucial.

Type	Reflective light barrier
Cable Length	3.00m
Connector	Cable, open end
Dim	(L x W x H) 26 x 7 x 14.6 mm
Enclosure material	PBT
Height	14.6mm
IP Rating	IP64
Length	26mm
Max. operating voltage	24V DC
Max. temperature	+55°C
Min. operating voltage	5V DC
Min. temperature	-25°C
Model	L
Operating Voltage	5 - 24 V DC
Output Type	PNP
Transmitter type	LED IR
Wavelength	855nm
Width	7mm
