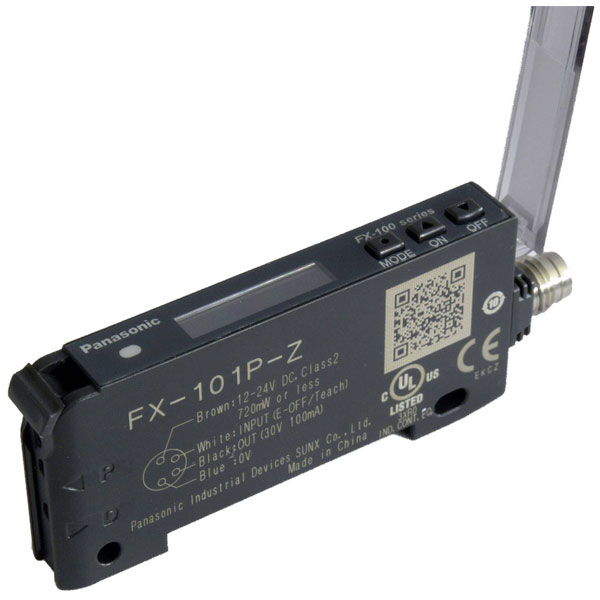

Panasonic FX102PZ FX100 Amplifier 9mm Teach-In Energy Saving DIN Rail

Panasonic's FX102PZ is a FO amplifier utilising a glass fibreglass fibre cable. It enhances light transmission in light barriers, providing reliable performance. This light-wave conductor amplifier is ideal for applications requiring precise light detection and control.

Type	FO amplifier
IP Rating	IP40
Ambient temperature	-10 - +55°C
Connector	M8 (4-pin)
Dim	(L x W x H) 65.5 x 9 x 30 mm
Height	30mm
Length	65.5mm
Max. operating voltage	24V DC
Maximum Temperature	+55°C
Min. operating voltage	12V DC
Min. temperature	-10°C
Misc Attribute 1	Light wave conductor amplifiers
Output	PNP-Transistor 100mA
Output Type	PNP
Pick-up time (details)	250µs
Response Time	2.5ms
Width	9mm
