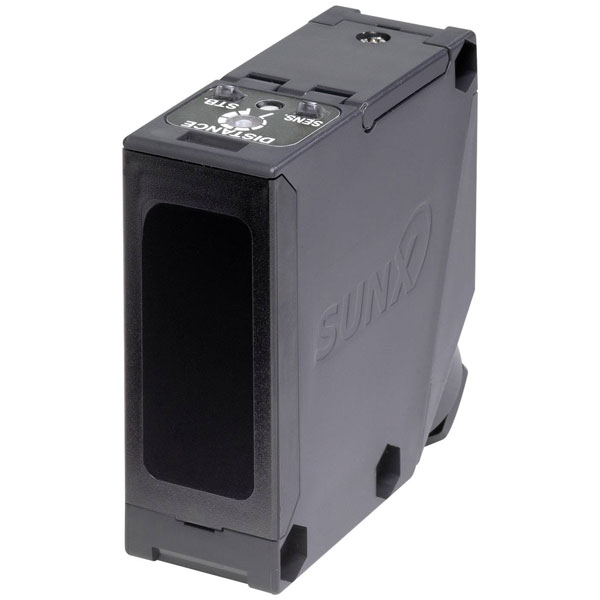

Panasonic EQ511 Triangulation Sensor 1 pc Background Suppression Detection

Panasonic's EQ511 is a triangulation sensor designed for precise distance measurement applications. This light barrier sensor is ideal for detecting the presence of objects or monitoring positioning. Its compact design and reliable performance make it suitable for automation and industrial environments.

Type	Triangulation sensor
IP Rating	IP67
Connector	Screw terminals
Dim	(L x W x H) 68 x 26 x 68 mm
Height	68mm
Length	68mm
Max. operating voltage	24V DC
Max. Range	2.5m
Maximum Temperature	+55°C
Min. operating voltage	12V DC
Min. temperature	-25°C
Operating Voltage	12 - 24 V DC
Response Time	2ms
Transmitter type	LED IR
Width	26mm
