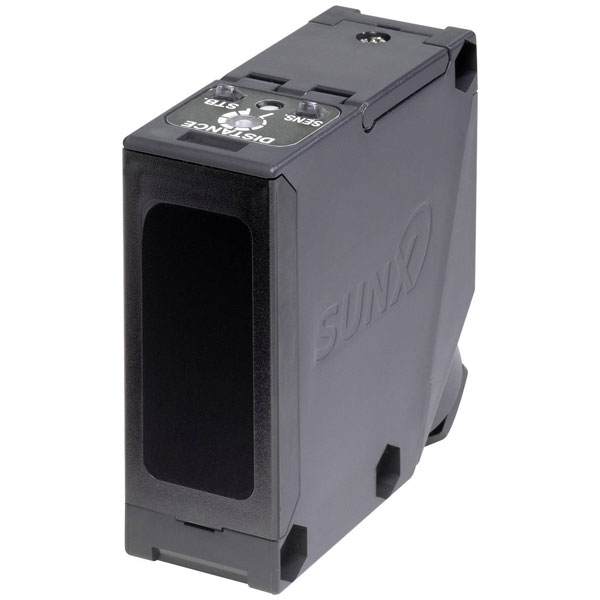

Panasonic EQ501T Sensor Reliable Detection with Background Suppression

The Panasonic EQ501T is a triangulation sensor known for its precision in distance measurement. It is commonly used in applications requiring accurate object detection and positioning. The sensor's light barrier technology ensures reliable performance in industrial environments.

Type	Triangulation sensor
IP Rating	IP67
Connector	Screw terminals
Dim	(L x W x H) 68 x 26 x 68 mm
Height	68mm
Length	68mm
Max. Range	2.5m
Maximum Temperature	+55°C
Min. temperature	-25°C
Operating Voltage	12, 24 - 240, 240 V DC, V AC
Response Time	20ms
Transmitter type	LED IR
Width	26mm
