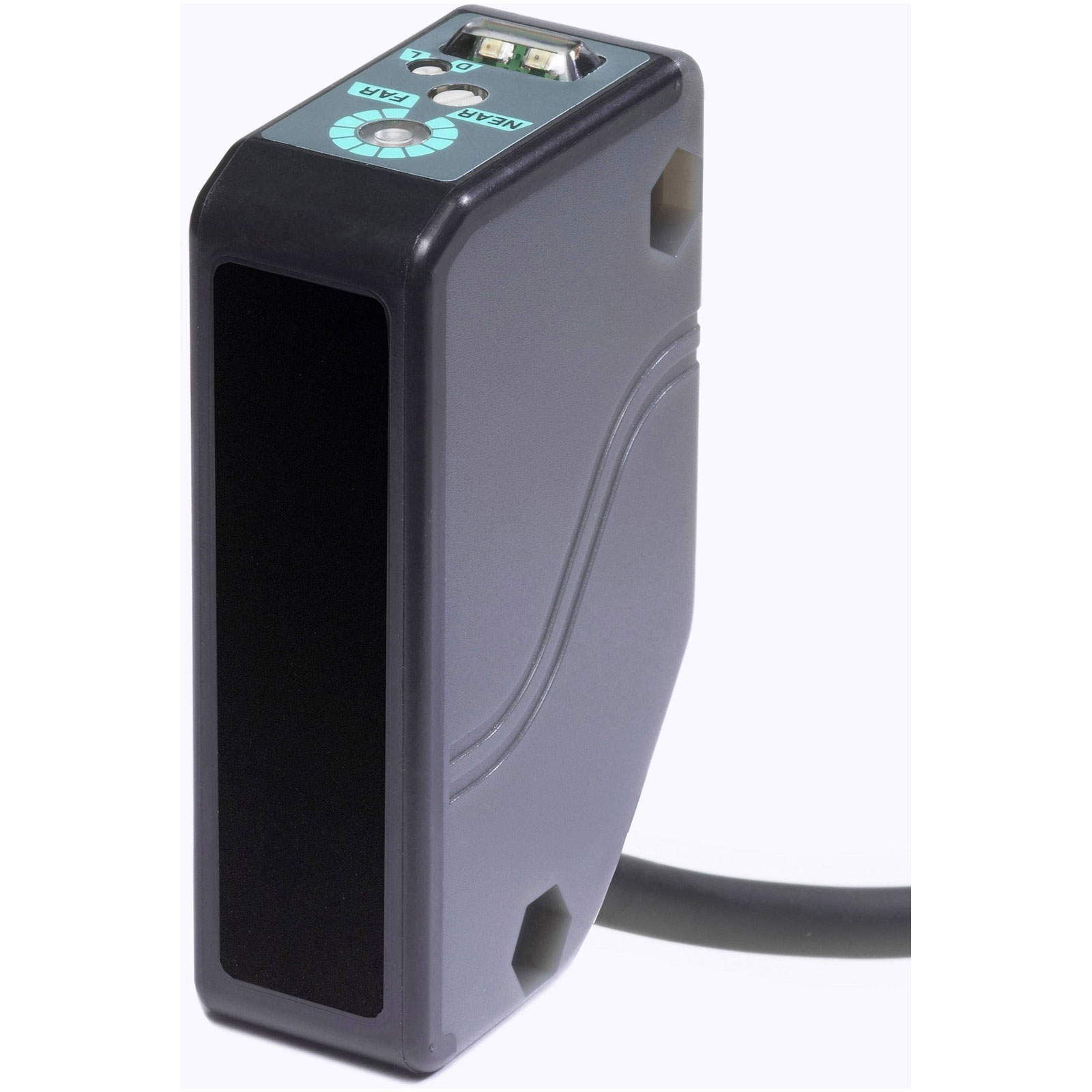

Panasonic EQ34 Triangulation Sensor: 2m Range Fast 2ms Response BGS

Panasonic's EQ34 Triangulation Sensor is a precise light barrier ideal for detecting objects with varied positions. This sensor is known for its accurate distance measurement capabilities. Typical applications include automation systems and complex manufacturing processes.

Type	Triangulation sensor
IP Rating	IP67
Cable Length	2.00m
Connector	Cable, open end
Depth	40mm
Dim	(W x H x D) 20 x 68 x 40 mm
Height	68mm
Max. operating voltage	30V DC
Max. Range	2m
Maximum Temperature	+55°C
Min. operating voltage	12V DC
Min. temperature	-20°C
Operating Voltage	12 - 30 V DC
Output Type	NPN
Response Time	2ms
Transmitter type	LED IR
Width	20mm
