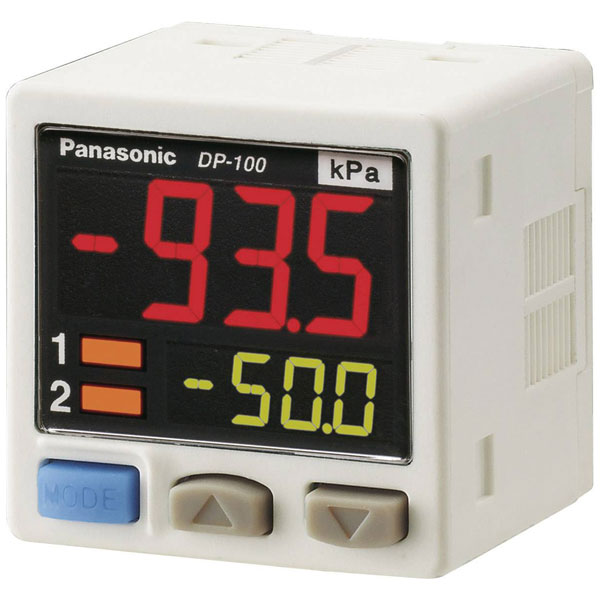

Panasonic DP-102-M-P Pressure Sensor -1 to 10 bar Dual LCD Compact Design

The Panasonic pressure sensor DP-102-M-P, measuring 42.5 x 30 x 30 mm, operates within a range of -1 bar to 10 bar. This compact air pressure sensor features a cable with an open end and is ideal for precise force detection in various industrial applications. It is commonly used as a barosensor or force switch in systems requiring accurate pressure monitoring.

Type	Pressure sensor
Connector	Cable, open end
Dim	(L x W x H) 42.5 x 30 x 30 mm
Height	30mm
Hose connection	M5 IG
IP Rating	IP40
Length	42.5mm
Max. operating voltage	24V DC
Maximum Temperature	+55°C
Min. operating voltage	12V DC
Min. temperature	-10°C
Model	Relative pressure
Operating Voltage	12 - 24 V DC
Outputs	PNP
Pressure reading range	-1 bar up to 10 bar
Pressure reading range (max.)	10bar
Pressure reading range (min.)	-1bar
Width	30mm
