Panasonic DK1A-12V-F PCB Relay 12V DC 10A 1 Maker 1 Pc

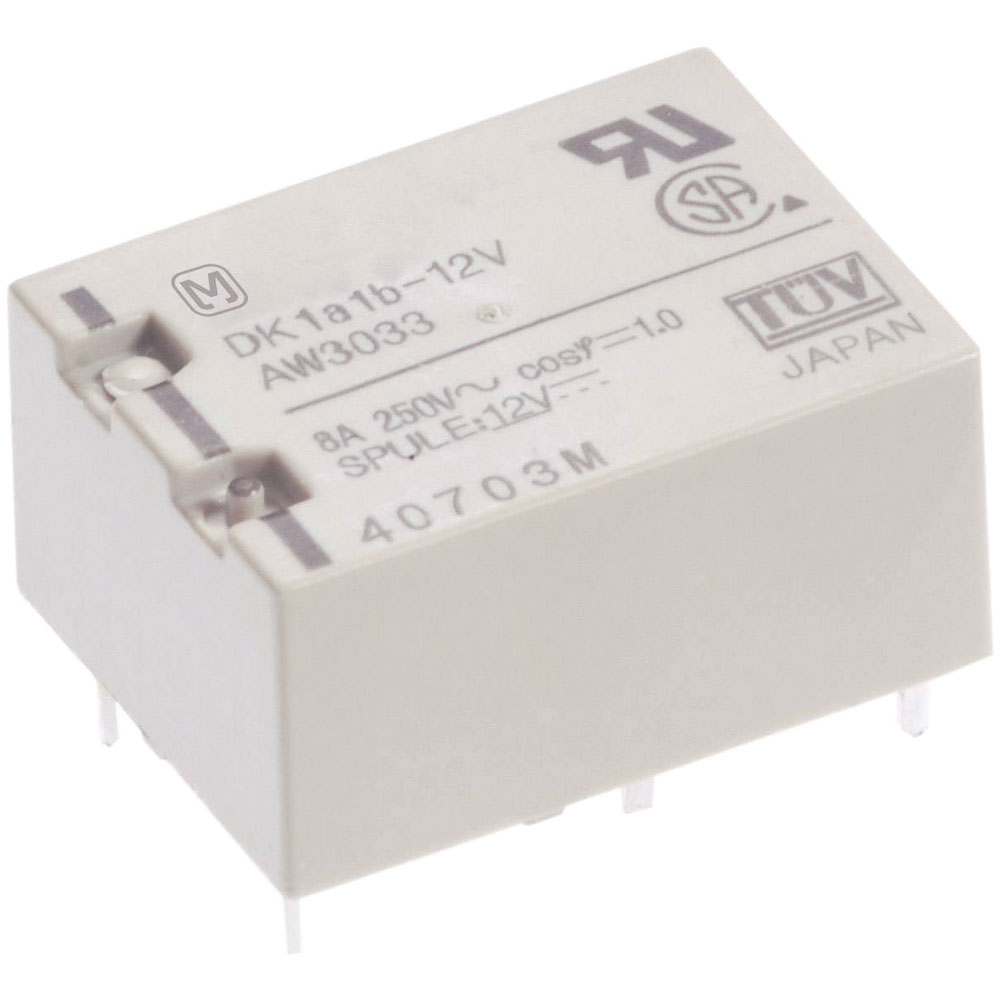

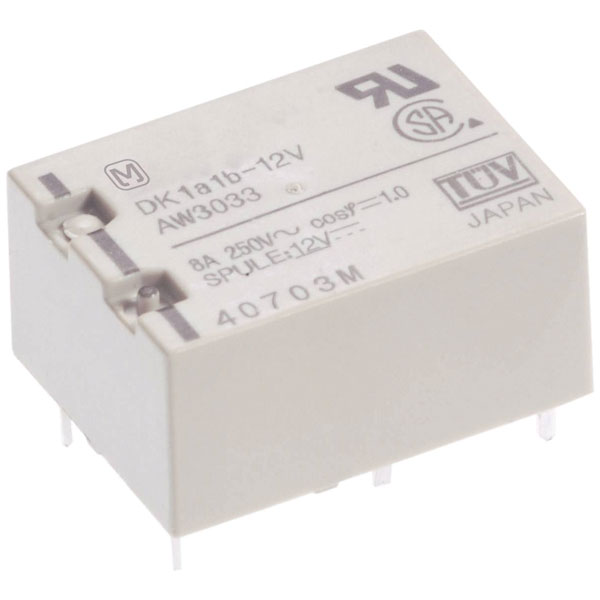

Image Representative of Range

Panasonic DK1A-12V-F PCB Relay 12V DC 10A 1 Maker 1 Pc

Panasonic
Standard range
Order Code:

05-6870

Brand: Panasonic MPN: DK1A-12V-F
Qty Unit Price (Ex VAT)
1+ £6.55
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
47 in stock, despatched in 4 working days

The Panasonic DK1A-12V-F is a PCB-mounted relay with a 12 V DC coil and a 10 A current rating. It is designed for use in applications requiring reliable switching, such as in power circuits and automation systems. The relay's compact size and robust construction make it ideal for printed circuit board assemblies and miniaturised electronic devices.
Type PCB relay
Coil nominal voltage 12V DC
Connection Solder pins
Contact material AgSnO2
Contact type 1 maker
Control mode monostable, 1 coil
Dim (L x W x H) 20 x 15 x 9.7 mm
Durability 5 x 10 7 cycles
Fall time 8ms
Height 9.7mm
Length 20mm
Max. temperature +65°C
Min. temperature -40°C
Misc Attribute DK1A-12V-F
Resistance (coil) 720Ω
Response time 10ms
Switching current (max.) 10A
Width 15mm
