Panasonic ASQM11620-A Microswitch 16V DC 50mA IP67 Momentary On/(Off)

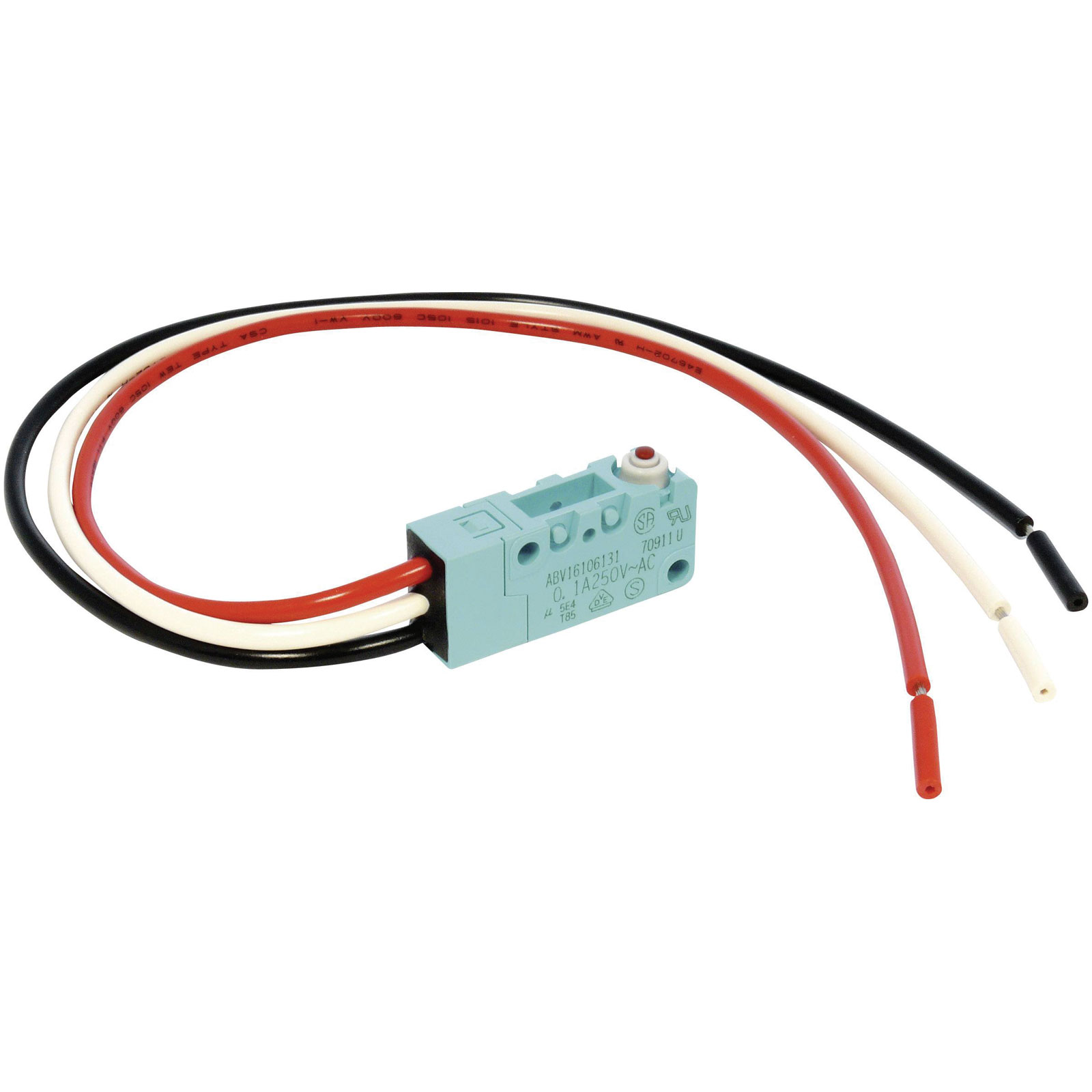

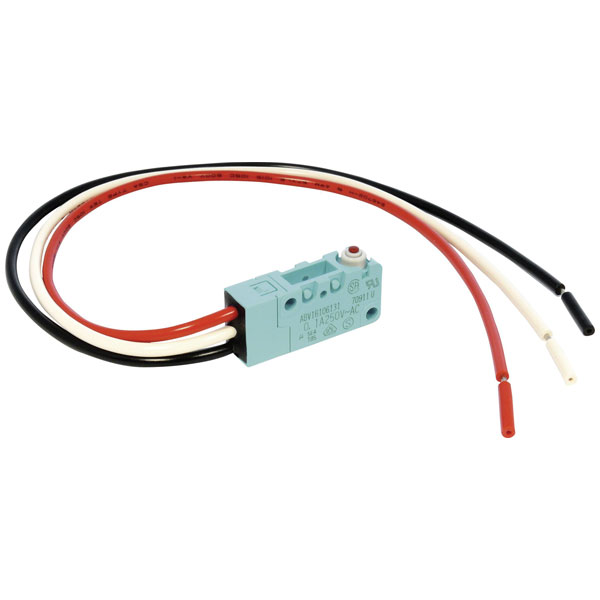

Image Representative of Range

Panasonic ASQM11620-A Microswitch 16V DC 50mA IP67 Momentary On/(Off)

Panasonic
Standard range
Order Code:

05-6841

Brand: Panasonic MPN: ASQM11620-A
Qty Unit Price (Ex VAT)
1+ £3.78
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
149 in stock, despatched in 4 working days

The Panasonic ASQM11620-A is a miniature microswitch designed for momentary function with a rating of 16 V DC and 50 mA. It features an IP67 rating for high resistance to dust and water, making it suitable for use in harsh environments. Typically used in consumer electronics and industrial controls, it offers reliable performance in compact applications.
Type Microswitch
Connection Open end cable
Contact type 1 breaker
Dim (L x W x H) 12.9 x 8.5 x 17.5 mm
Durability 150000.
Functions momentary
Height 17.5mm
IP rating IP67
Length 12.9mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute ASQM11620-A
Operation type Tappet
Switch position 1 x On/(Off)
Switching current (max.) 50mA
Switching voltage 16V DC
Width 8.5mm
