Panasonic ALDP105 PCB Relay 5V DC 5A 1 Maker 1 pc

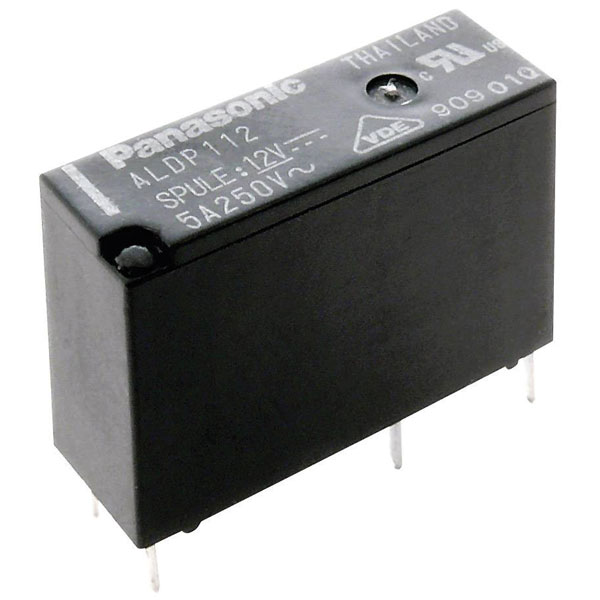

Image Representative of Range

Panasonic ALDP105 PCB Relay 5V DC 5A 1 Maker 1 pc

Panasonic
Order Code:

05-6827

Brand: Panasonic MPN: ALDP105 EAN-13: 2050001891471
Qty Unit Price (Ex VAT)
3+ £1.59
10+ £1.53
24+ £1.49
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
39 available to back orderBack-order availability date - 17/01/2026

Panasonic's ALDP105 is a PCB relay designed for mounting on printed circuit boards. It operates at 5 V DC and can handle a current of up to 5 A. Commonly used in electronic devices, this mini relay is ideal for applications requiring reliable switching in compact spaces.
Type PCB relay
Coil Voltage 5V DC
Switching Current 5A
Length 20.5mm
Width 7.2mm
Height 15.3mm
Connection Solder pins
Contact Material AgNi
Contact Type 1 maker
Control Mode monostable, 1 coil
Dim (L x W x H) 20.5 x 7.2 x 15.3 mm
Durability 5 x 10 6 cycles
Fall Time 10ms
Max. temperature +85°C
Min. temperature -40°C
Resistance (coil) 125Ω
Response Time 10ms
Switching voltage (max.) 277V AC
