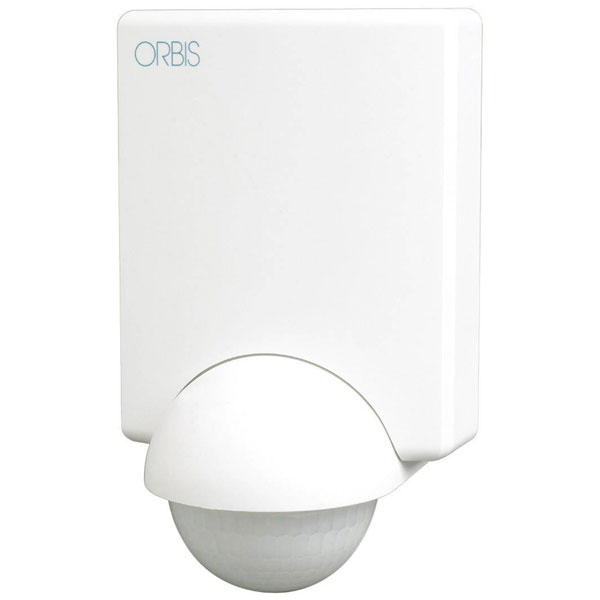

ORBIS OB132312 Wall Motion Detector IP55 240° Adjustable Parameters

The ORBIS Zeitschalttechnik OB132312 is a surface-mount motion detector with a 240° detection range. It is designed for wall installation and features an IP55 rating, making it suitable for outdoor use. Ideal for security applications, the device reliably detects movement to control lighting systems.

Type	Motion detector
Detection Angle	240°
Dim	(L x W) 123.5 mm x 76.5 mm
Factory colour	White
IP Rating	IP55
Length	123.5mm
Max. Range	12m
Misc Attribute	PROXIMAT
Operating Temperature	-10°C to +40°C
Operating Voltage	230V AC
Switching Capacity	2300W
Switching capacity (energy saving bulbs)	1300 VA
Switching capacity (halogen bulbs)	2000W
Switching capacity (LED)	500VA
Switching capacity (light bulbs)	2000W
Switching capacity (light tubes)	1300VA
Time settings	10 sec to 10 Min.
Twilight settings	5 to 2000lx
Used at	Indoors
Width	76.5mm
