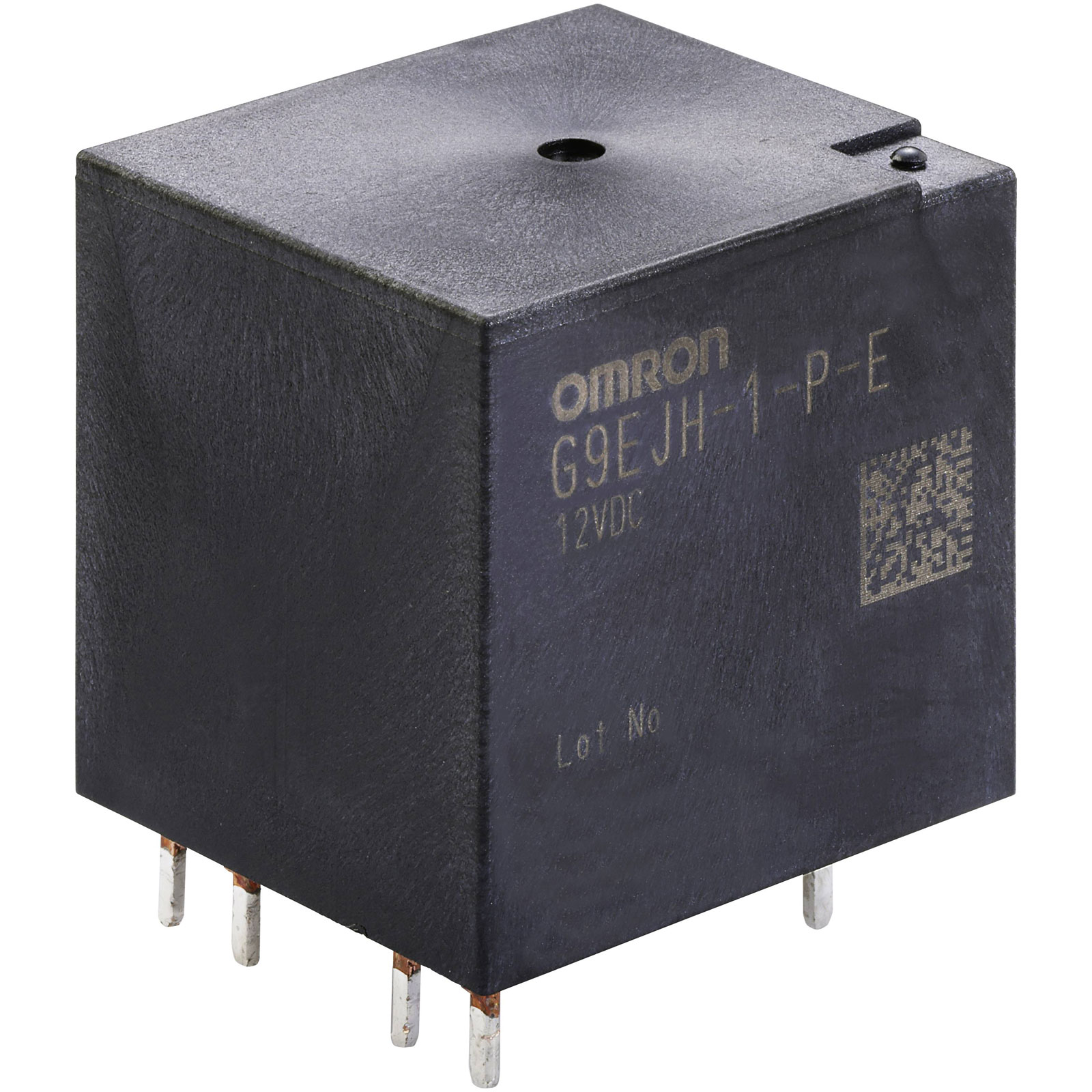

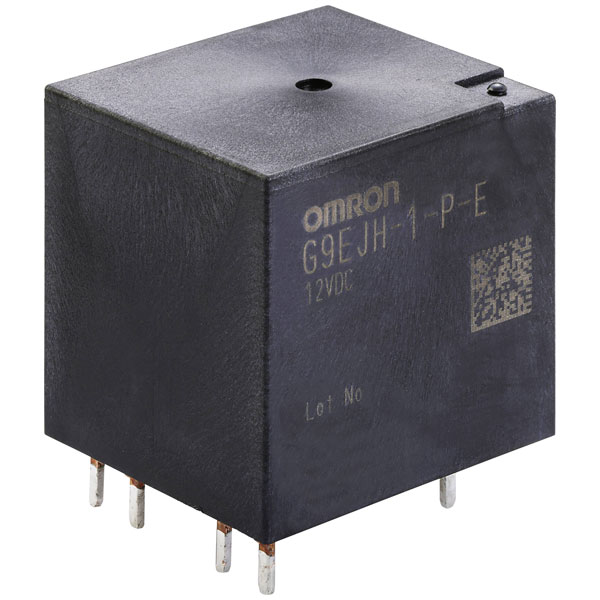

Omron G9EJH-1-P-E DC12 Power relay 12V DC 30A s PCB Mount Plug-In Relays

Omron's G9EJH-1-P-E DC12 is a power relay engineered to deliver reliable performance in demanding applications, featuring a 12 V DC coil and designed to handle switching currents up to 30 A. This relay is optimised for printed circuit board (PCB) mount installations, allowing for seamless integration into a variety of electronic assemblies. The plug-in design facilitates easy installation and replacement, making it an ideal choice for applications such as automotive electrical systems, industrial control panels, and power management systems. With its robust construction, it is suitable for use in environments where space is a premium but high current handling is essential. This relay's technical specifications ensure it meets the rigorous demands of both commercial and industrial engineering projects.

Type	G9EJH-1-P-E DC12
Coil Nominal Voltage	12V DC
Colour	Black
Connection	Print
Contact Type	1 maker
Content	1
Control Mode	monostable, 1 coil
Dimensions	(L x W x H) 27 x 31 x 30 mm
Height	30mm
Length	27mm
Max. pick-up Voltage	15.6V DC
Max. temperature	85°C
Maximum Temperature	85°C
Min. pick-up Voltage	7.2V DC
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Product Type	Power relay
Resistance (coil)	120Ω
Switching current (max.)	30A
Switching voltage (max.)	800V AC
Width	31mm
