Omron D2F-01L2-D3 Switch Ultra Subminiature Basic 1A 125VAC SPDT Lever

Inc VAT

Qty	Unit Price (Ex VAT)
200+	£1.25

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 200

Available to back orderBack order, lead time 4 months

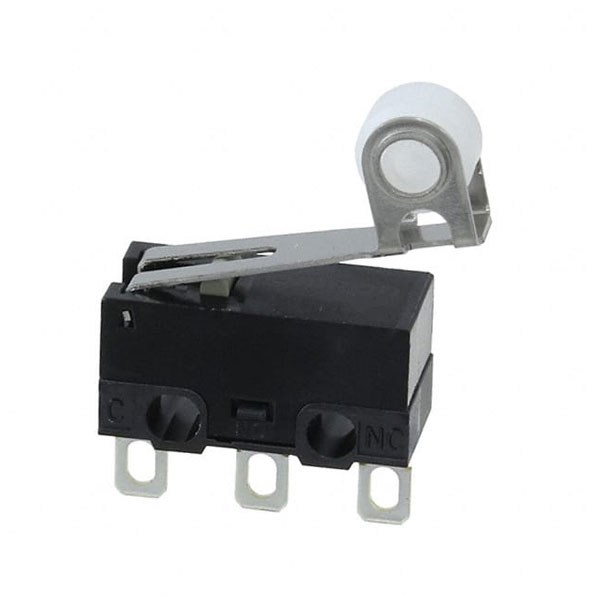

The Omron D2F-01L2-D3 switch is an ultra subminiature basic switch.

It features a single-pole double-throw (SPDT) contact configuration and a lever actuator.

The switch supports a current rating of 1A at 125VAC.

Typically used in consumer electronics and industrial equipment, it offers reliable performance in space-constrained applications.

Type	Limit Switch
Contact Configuration	SPDT
Switch Function	On/(On)
Current Rating (Amps)	1A
Voltage Rating - AC	125V
Voltage Rating - DC	30
Actuator Type	Hinge Roller Lever
Hazardous Area Certification	No
IP Rating	IP40
Maximum Operating Temperature	85°C
Mechanical Life	1000000Operations
Minimum Operating Temperature	40°C
Product Type	Limit Switch
Series	D2F
Standards/Approvals	UL (UL61058-1)/cUL (CSA C22.2 No.61058-1)
Switching AC Voltage	250V ac
Switching DC Voltage	30V dc
