Omron D2F-01-D3 Snap Acting Limit Switch SPDT Momentary 0.1A Subminiature

Inc VAT

Qty	Unit Price (Ex VAT)
250+	£0.969

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 250

Available to back orderBack order, lead time 4 months

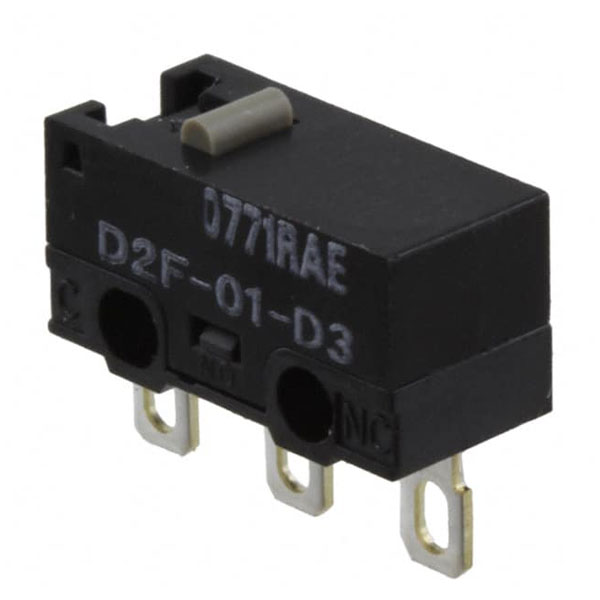

The Omron D2F-01-D3 is a subminiature snap acting limit switch.

It features SPDT contacts and momentary action, suitable for low current applications up to 0.1A.

This switch is commonly used in electronic devices, providing precise control in compact spaces.

Its reliability and small size make it ideal for consumer electronics and small machinery.

Type	Limit Switch
Contact Configuration	SPDT
Switch Function	On/(On)
Current Rating (Amps)	0.1A
Voltage Rating - AC	125V
Voltage Rating - DC	30
Actuator Type	Pin Plunger
Contact DC Voltage	30V dc
Hazardous Area Certification	No
IP Rating	IP40
Maximum Operating Temperature	65°C
Mechanical Life	1000000Operations
Microswitch Type	Ultra Subminiature
Minimum Operating Temperature	25°C
Operating Force	1.47N
Product Type	Micro Switch
Series	D2F
Standards/Approvals	RoHS
Switch Contact Current	100mA
Terminal Type	Solder
