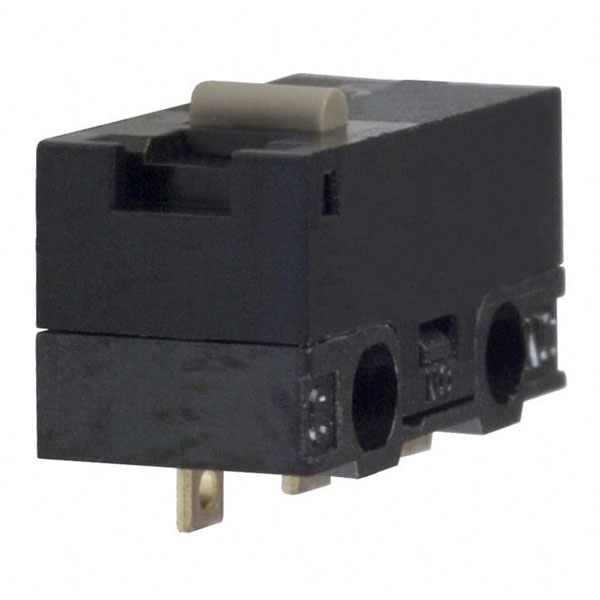

Omron D2F-01-D Subminiature Basic Switch 1A 125V SPDT Solder Terminals

Inc VAT

Qty	Unit Price (Ex VAT)
250+	£0.990

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 250

Available to back orderBack order, lead time 4 months

The Omron D2F-01-D is a subminiature basic switch with a single-pole double-throw (SPDT) configuration.

Rated for 1A at 125V, it features solder terminals for connection.

This switch is ideal for compact and precise electronic applications such as consumer electronics and small appliances.

Its robust design ensures reliable performance in a variety of devices.

Type	Limit Switch
Contact Configuration	SPDT
Switch Function	On/(On)
Current Rating (Amps)	1A
Voltage Rating - AC	125V
Voltage Rating - DC	30
Actuator Type	Pin Plunger
Contact DC Voltage	30V dc
Hazardous Area Certification	No
IP Rating	IP40
Length	12.8mm
Maximum Operating Temperature	65°C
Mechanical Life	1000000Operations
Microswitch Type	Ultra Subminiature
Minimum Operating Temperature	25°C
Operating Force	1.47N
Product Type	Micro Switch
Series	D2F
Standards/Approvals	RoHS
Switch Contact Current	100mA
Terminal Type	Solder
